Work Table Options
Work table grid options for different needs.
Overview
The work table grids are placed on/in the stainless-steel cutting tank. For all Water Jet Sweden machine systems (except Micro) the cutting tank is a standalone item. The purpose of this is to keep cutting accuracy even after hours of cutting. A standalone tank avoids that the frame and cutting tools are affected by heat and vibrations generated in the cutting tank.
Grid options

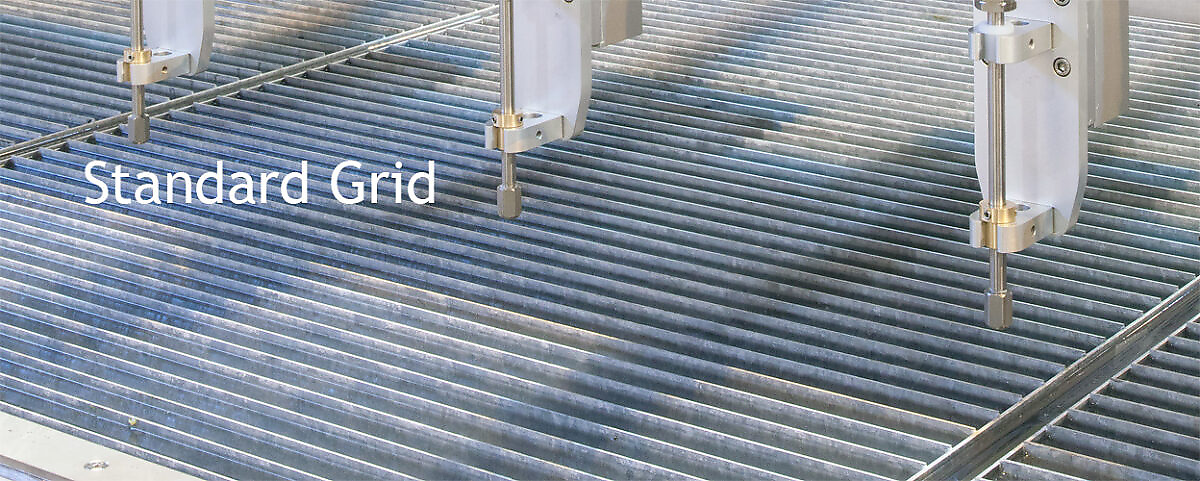

Standard Grid
A galvanized grid frames mounted on a cutting table bolted into the machine tank. Each grid module is carefully processed be leveled for all new machines.
Wave Grid
This option is ideal when parallel cutting is required and causes less back splash underneath the material.
Tube Grid
A grid-system is ideally suited for cutting thick and heavy materials at low speed. The tubes are individually mounted on tube holders assembled on a galvanized grid, which is installed below water level.
Glass Cutting Grid
A tube grid system specially developed for glass cutting. Plastic tubes with a top rubber seal make the table perfect for supporting brittle materials.
Honey Comb
This special grid is used for pure waterjet cutting (PWJ). It is made of thin, 50 mm wide aluminum stripes building a thick honeycomb shaped grid. The Honey Comb is placed on top of the existing table grids.
