X-series
A fundamental Select model for high performance 2D cutting machine tool.
Overview

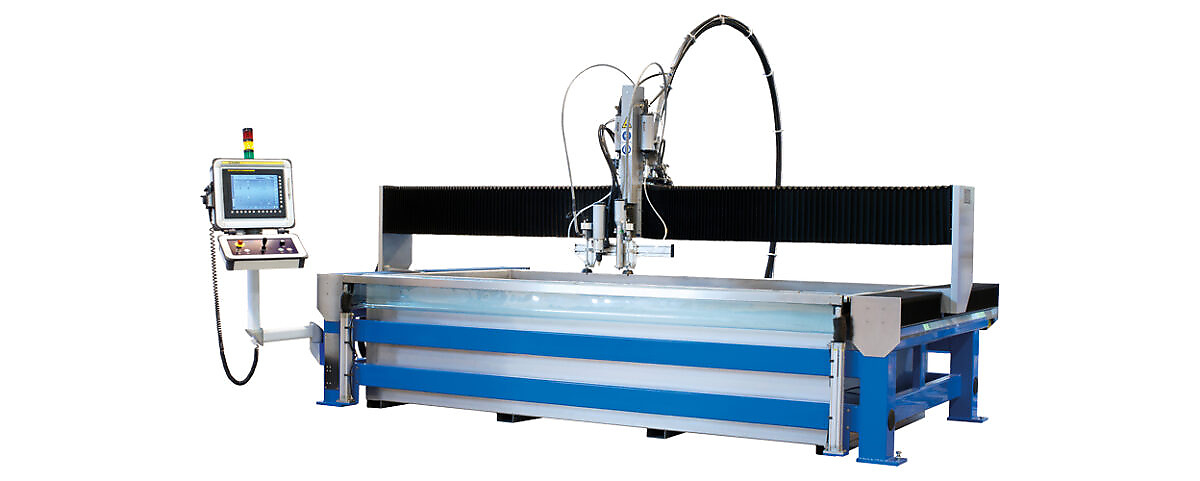

The X-series is commonly used for in house production and small production series. It has all the basic features you need for high precision 2D cutting, for both 4000 or 6000 bar technologies.
The X-series machine has a single Z-movement where multiple cutting heads (PWJ) or a second cutting head (AWJ) can be applied on a beam. There are a number of operational functions and tools available as standard options.
Technical specifications
Technical data
| Construction | Gantry |
|---|---|
| Frame | Welded |
| Cutting Table/Tank | Stainless Steel |
| Motion System | Ballscrew |
| Control Unit | Panel One HMI |
| CNC control system | Fanuc |
| Process | PWJ, AWJ and FAWJ compatible |
| Pressure Technology | 4000 bar and 6000 bar |
| Machine sizes (m) | 1×1 m, 2×1 m, 3×1.5 m, 3×2 m and 4×2 m |
| Machine sizes (inch) | 3'3"x3'3", 6'7"x3'3", 9'10"x4'11", 9'10"x6'7" and 13'1"x6'7" |
Performance
| Maximum Z-movement | 250 mm (9.85") |
|---|---|
| Maximum Table Load | 800 kg/m2 (164 lb/ft2) |
| Positioning Accuracy | ± 0.050 mm/m (±0.002"/3'3.37") |
| Repetition Accuracy | ± 0.025 mm (±0.001") |
Standard options
Second abrasive cutting head (beam)
Drilling Unit
Zero Point Indicator
Work Piece Indicator (probe function)
Height Sensor, Collision Sensor
Unmanned Operation Functions
Quick Clamping
Online or manual abrasive feeding systems
Waste and water handling systems
HMI Remote Control of HP Pump and HMI Pressure Monitoring of HP Pump
Complete your system
Cutting heads, pumps, software and peripheral equipment designed to work together with the X-series.
