T-Model
A complete entry level cutting tool fully equipped for 2D abrasive cutting.
Overview

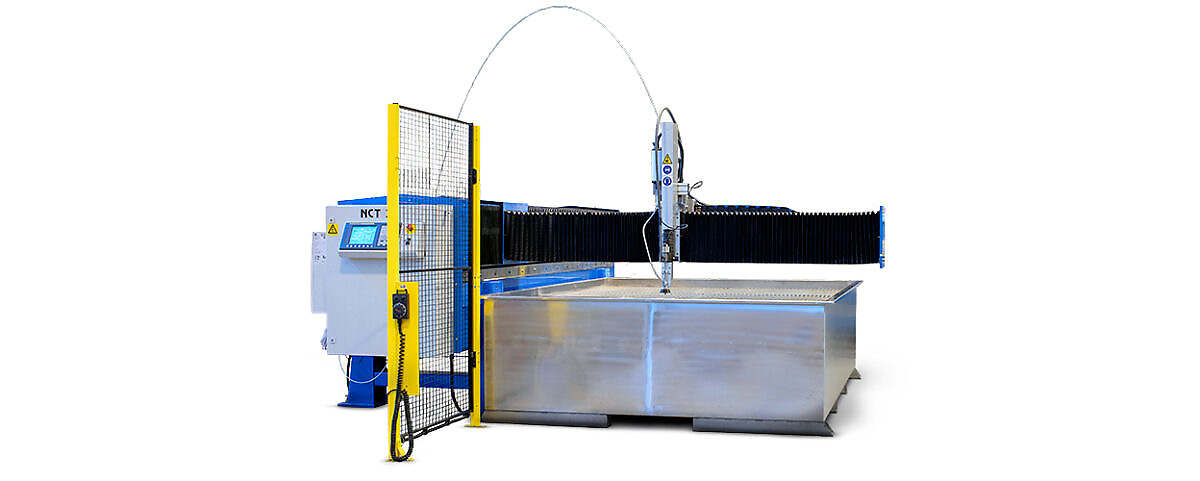

T-model is such a rare thing as a high-performance entry level waterjet cutting machine. Built by the same people and the same quality design principles as our other machine models. The machine comes in two sizes, 2 x 3 meter or 2 x 6 m, to fit a wide range of material sizes and cutting needs.
Product description
T-model, standard setup, fits any kind of industry with a need of cutting bespoke parts in different kind of materials. You cut almost any material using the same waterjet cutting tool. The T-model is designed to fit operations like prototype workshops, in-house job shops and design- and engineering workshops. But add a few optional features and you easily turn the machine into a full time industrial production tool.
Technical specifications
Technical specification
| Construction | Flying Bridge |
|---|---|
| Frame | Welded Steel Beams |
| Cutting Table/Tank | Stainless Steel |
| Covers | Stainless Steel / Bellow |
| Motion System | Ballscrew |
| Control Unit | Fanuc 8.5" Touch Screen |
| CNC Control System | Fanuc |
| CAD/CAM | IGEMS |
| Cutting Heads | One |
| Cutting Processes | AWJ/PWJ |
| Pressure Technology | 4000 bar and 6000 bar |
| Machine sizes (m) | 2 x 3 m and 2 x 6 m |
| Machine sizes (inch) | 6'7"x9'10" and 6'7"x19'8" |
Machine performance
| Maximum Z-movement | 200 mm (7.87") |
|---|---|
| Maximum Table Load | 1200 kg/m2 (246 lb/ft2) |
| Positioning Accuracy | ± 0.05 mm/m (±0.002"/3'3.37") |
| Repetition Accuracy | ± 0.025 mm (±0.001") |
Product features
Head Protection Package
Drilling Tool
Abrasive Supply System
Abrasive Tower 1 ton
Online Pressure Vessel
Abrasive Removal System
Abrasive Monitoring Package
Remote Operator Software
CAD/CAM Plugins
Water Softener
4000 bar pump upgrade
6000 bar upgrade package
