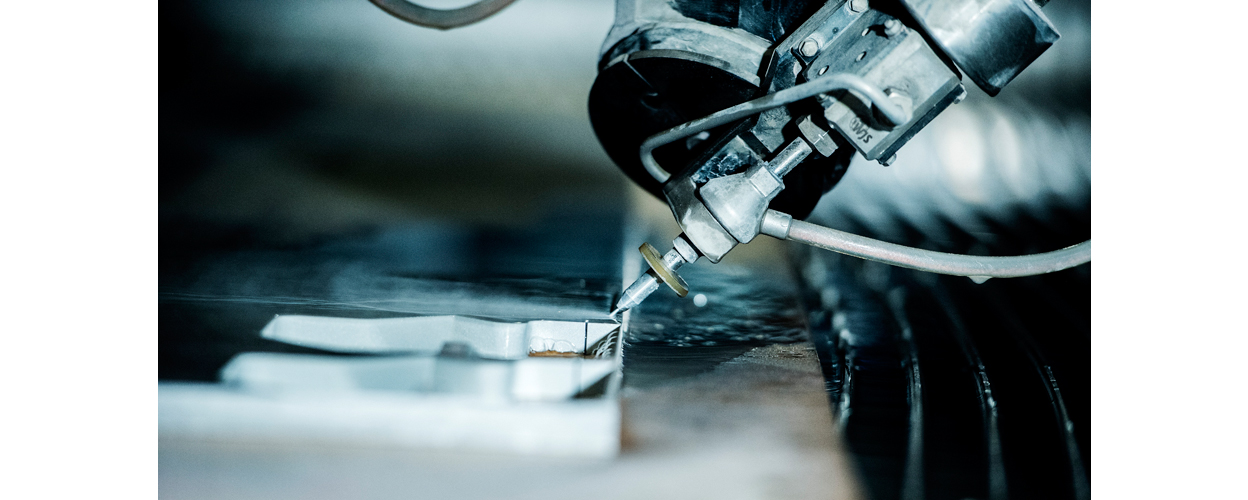

WJS Beveljet 60 Cutting Tool

For Bevel cutting and advanced 3D shapes

Five axis interpolations manage both bevel and free form 3D cutting. At first designed for sheet metal cutting with a 0-60° cutting angle for bevel cutting, taper angle control, and shaping of advanced sheet metal parts. A fully vector based calculation in Fanuc for TCP improve cutting quality. Since Beveljet has a five-axis capability also the third dimension, height, can be used for full 3D cutting combined with a 3D CAD/CAM software.

Contact

Christian Svensson

Global Sales

T: +46 457 455 475

E: sales@waterjet.se

Peter Rüdén

Global Sales

T: +46 457 455 460

E: sales@waterjet.se

Specifications

Maximum Z-movement: 250 mm (CNC controlled)

Cutting Performance: 0-60°

A-axis movement: ± 90°

C-axis movement: ± 400°

Transmission accuracy A&C axis: < 1 arcmin

Repetition accuracy A&C axis: < ± 0.1 arcmin

Pressure technology: 4000 bar & 6000 bar

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
