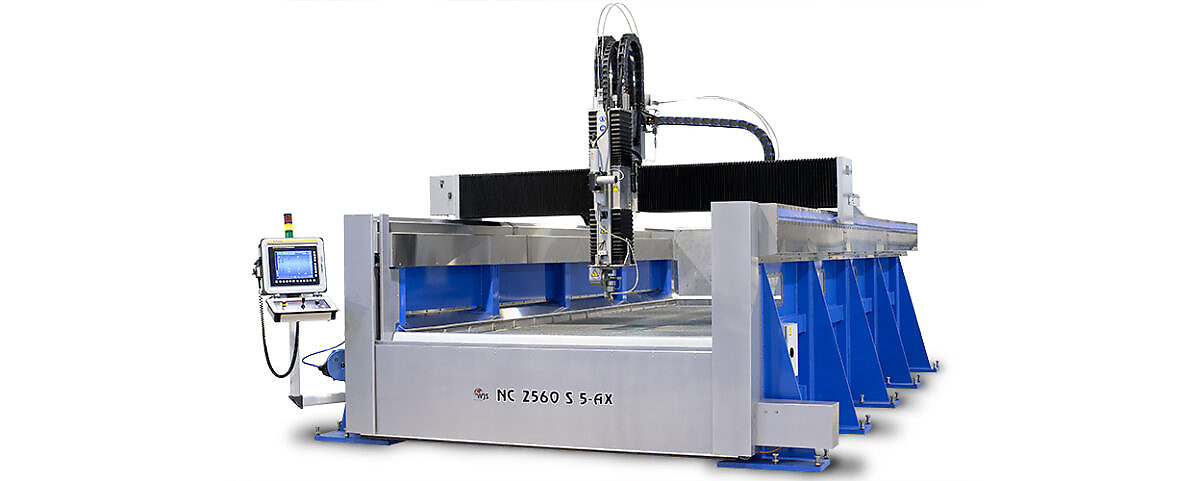

FiveX / FiveX Ultra
Forefront technology for advanced free form cutting.
Overview
FiveX machines are commonly used in high tech industry sectors, built with our most advanced technology and with an exceptional stable design to be able to repeatedly perform high precision free form cutting of full 3D components.
Product description
Large-scale 5-axis processing allows the advantages of the waterjet process to be utilized in the finishing of fabricated structures, pressed parts, molded composite parts and other 3-D parts. With Z-Axis capacities up to 1500 mm and a generous working area, the waterjet technology has been embraced largely by the Defense Industry, Space Industry, Aerospace Industry and Power Industry. FiveX Ultra is more compact and suitable for high-tech mechanical workshops in general. Designed materials such as Hardened Steel, Titanium, Kevlar and Carbon Fiber can easily be cut to precise form. Applications include trimming of molded parts into their final shape.
Characteristics:
Free form cutting – utilize free form cutting with an exceptionally long Z-movement up to 1500 mm. specially designed fixturing tables on request.
Intelligent Probe Interface – The Work Piece Indicator (Renishaw Probe Interface) is integrated with a large library of pre-designed measurement cycles, and customized measurement cycles can be delivered as an option.
Customer-specific fixtures – if there is a need, we create fixtures according to the customers’ specific cutting needs, as part of the total solution.
Technical specifications
Technical Data FiveX
| Construction | Gantry |
|---|---|
| Frame | Heavy-Duty, full size walls |
| Cutting Table/Tank | Forged grid / Stainless Steel |
| Covers | Stainless Steel Protection Covers |
| Motion System | Linear Drive (X) and Ballscrew (Y) |
| Control Unit | Panel One HMI |
| CNC control system | Fanuc |
| Process | AWJ |
| 3D Cutting | WJS 5AX |
| Pressure Technology | 4000 bar and 6000 bar (60 000 and 90 000 PSI) |
| Machine width (X) | 2.5-4 m (8'2.43"-13'1.48") as standard |
| Machine length (Y) | 2-6 m (6'6.74"-19'8.22") as standard |
| Maximum Z-movement | 1500 mm (59.055") |
Technical Data FiveX Ultra
| Construction | Gantry Machine |
|---|---|
| Frame | Heavy-duty, full-size walls |
| Cutting Table/Tank | Forged grid table / Stainless steel tank |
| Covers | Fanuc Dual Check safety with integrated front/back covers |
| Motion System | Ballscrew |
| Control Unit | Panel One HMI |
| CNC control system | Fanuc |
| Process | AWJ |
| 3D Cutting | WJS 5AX Ultra |
| Pressure Technology | 4200 bar (60 000 PSI) |
| Work table | 2880 x 2275 mm (9ft 5.4in x 7ft 5.6in) |
| Work area 2D (X, Y, Z) | 2400 x 1710 x 540 mm (7ft 10.5in x 7ft 5.5in x 1ft 9.3in) |
| Work space 3D (X, Y, Z) | 2080 x 1390 x 650 mm (6ft 9.9in x 4ft 6.7in x 2ft 1.6in) |
Product performance
Handy Operator Panel
Zero Point Indicator
Work Piece Indicator System (probe function)
Fixture Arrangements
Quick Water Level Adjustment
Jet Pen Marker System
Abrasive Delivery System with Abrasive Tower
Abrasive Removal System with Tip Container and Sediment Tank
Abrasive Level and Blockage Control
HMI Controlled Electronic Abrasive Feeder
HMI Remote Control of HP Pump
HMI Pressure Monitoring of HP Pump
HMI Proportional Valve Pressure Control
Unmanned Operation Functions
