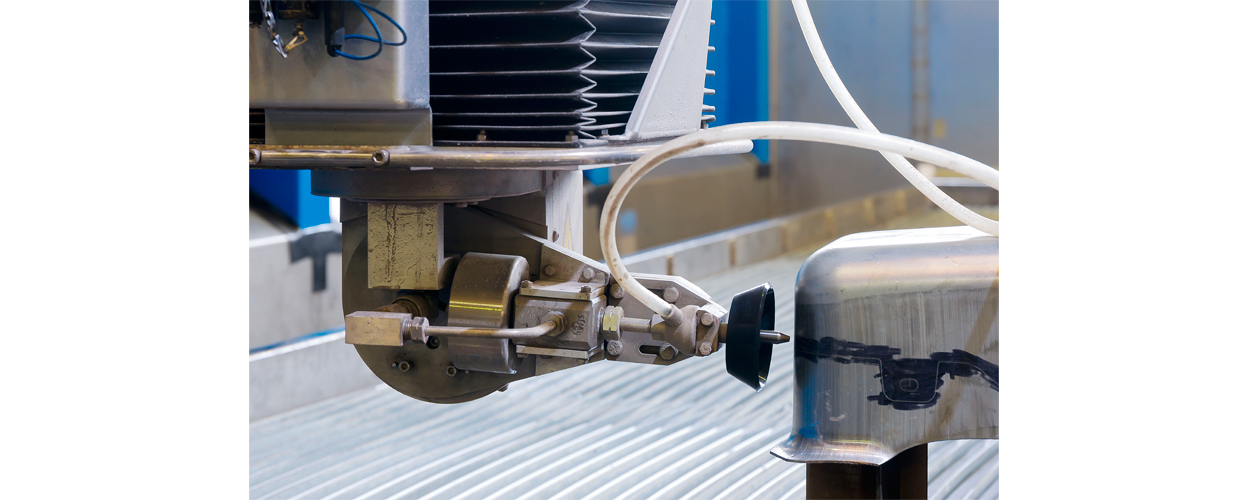

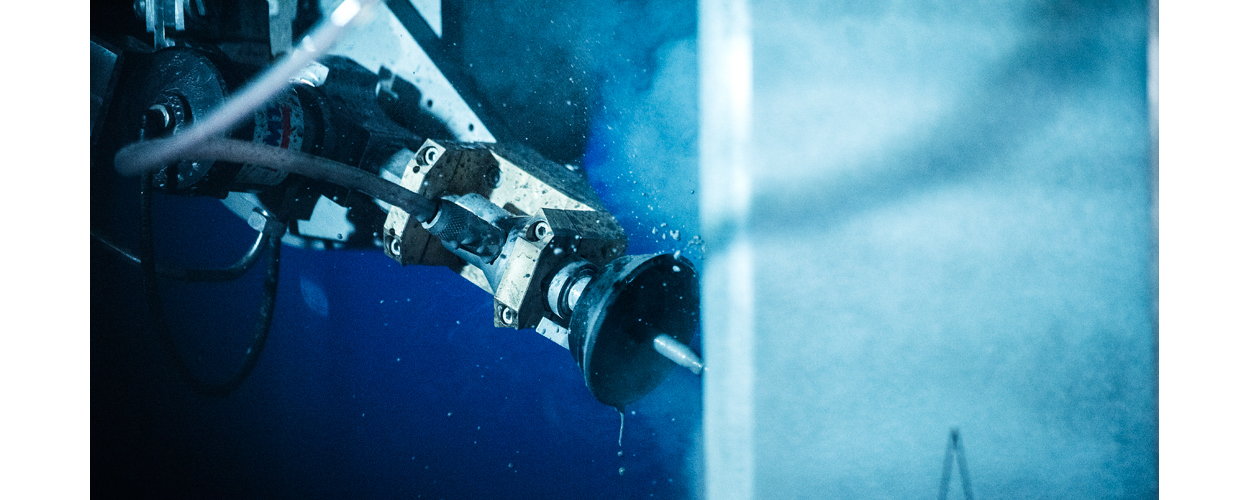

WJS 3D Cutting Tool

Designed for shaping large 3D parts in space

A 3D cutting tool designed to manage cut advanced 3D shapes in different work planes. The WJS 3D Cutting Tool is only available on our FiveX machine model, since the Z-axis movement of 1000 mm and 0-90° cutting angle requires exceptional machine stability and enhanced safety. A fully vector based calculation in Fanuc for TCP secure accuracy and cutting quality. A full 3D cutting tool, for any kind of material.

Contact

Christian Svensson

Global Sales

Peter Rüdén

Global Sales

Specifications

Maximum Z-movement: (CNC controlled) 1000 mm
Positioning Accuracy: ± 0.050 mm/m
Repetition Accuracy: ± 0.025 mm
Cutting Performance: 0-90°
A-axis movement: ± 91°
C-axis movement: ± 220°
Transmission accuracy A&C axis: < 1 arcmin
Repetition accuracy A&C axis: < ± 6 arcsec
Pressure technology: 4000 bar & 6000 bar

Five Year Performance Warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime Access to Waterjet Specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
