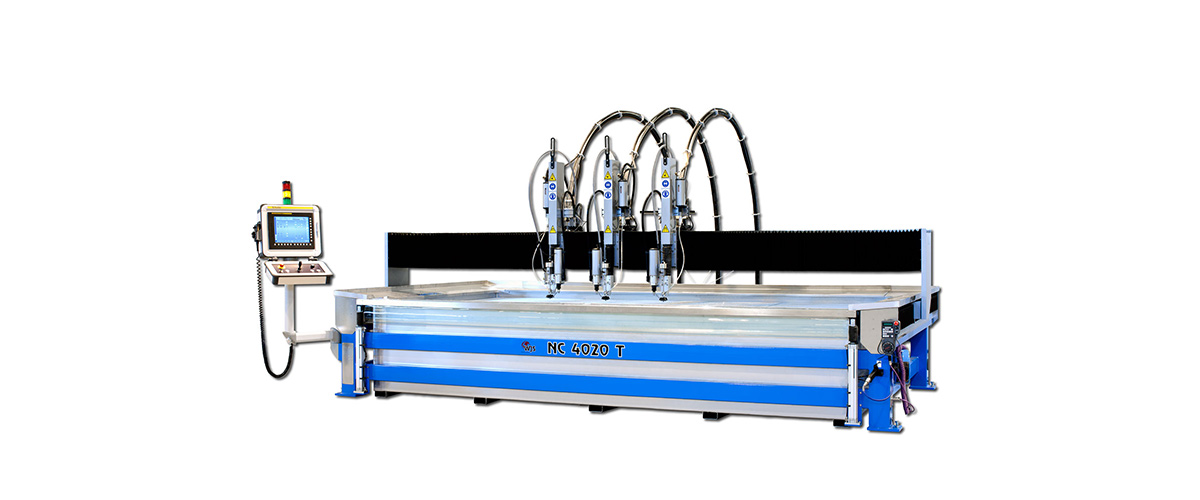

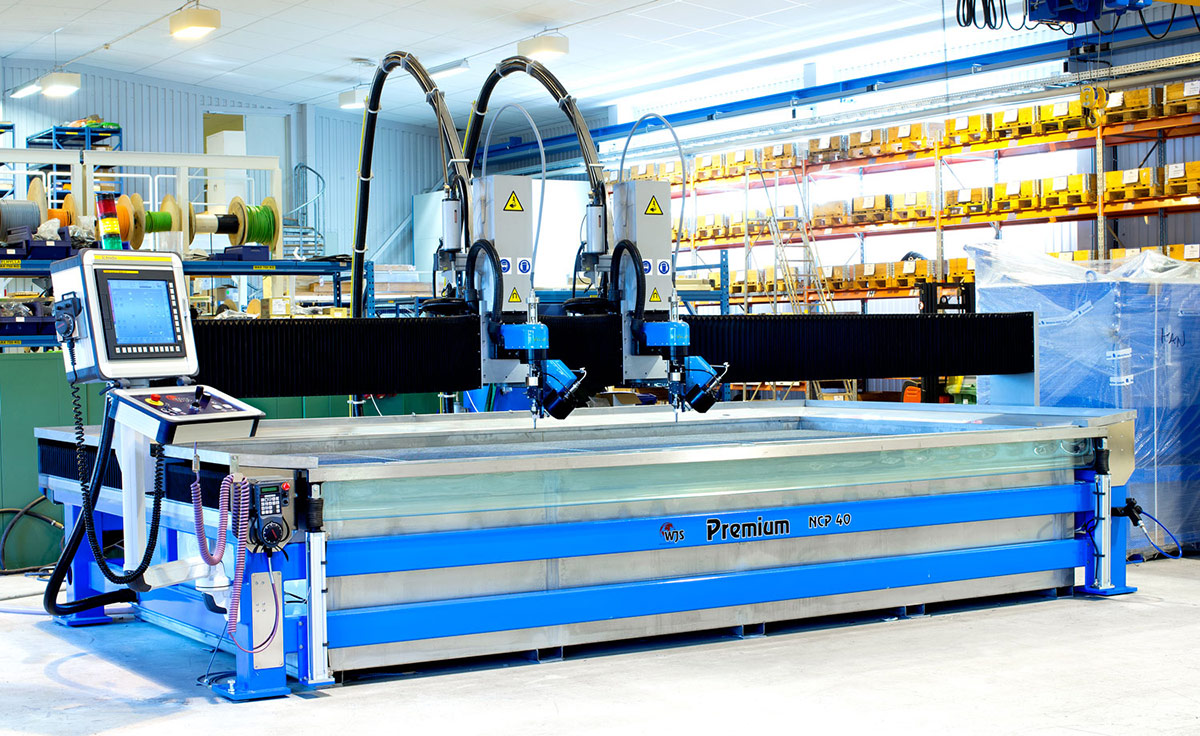

Premium

Versatile, top of the line cutting systems, in all sizes, from 2D to advanced five axis cutting in 3D

The Premium machine is an versatile and efficient machine tool that can be found in almost any professional job shop or industry. With a huge range of optional settings it can be designed to meet a wide range of cutting requirements, both 2D and 3D cutting. Based on Water Jet Sweden top class mechanical design it is a machine model for experts and tough performance demands.

Characteristics

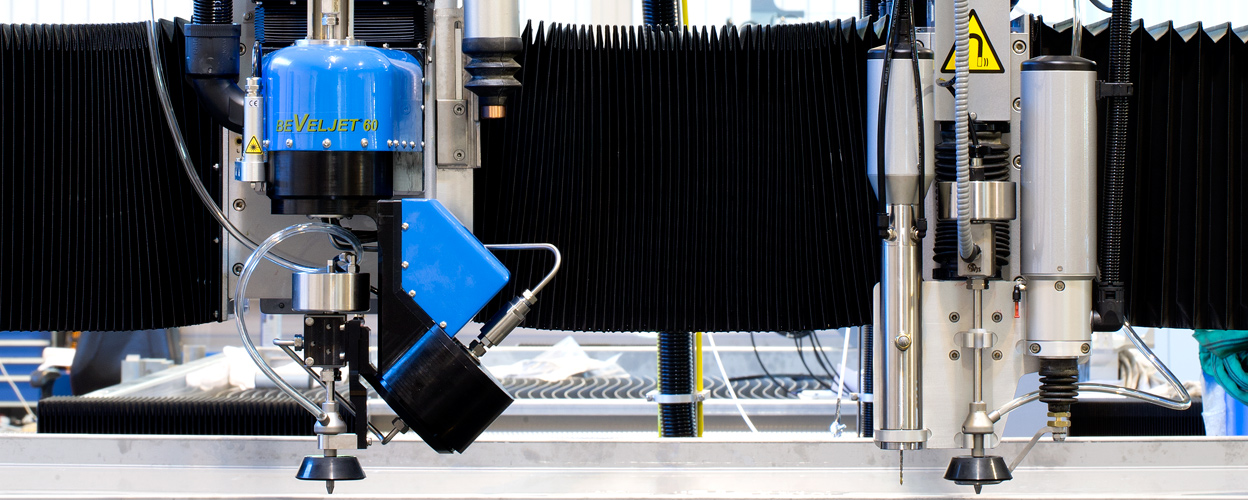

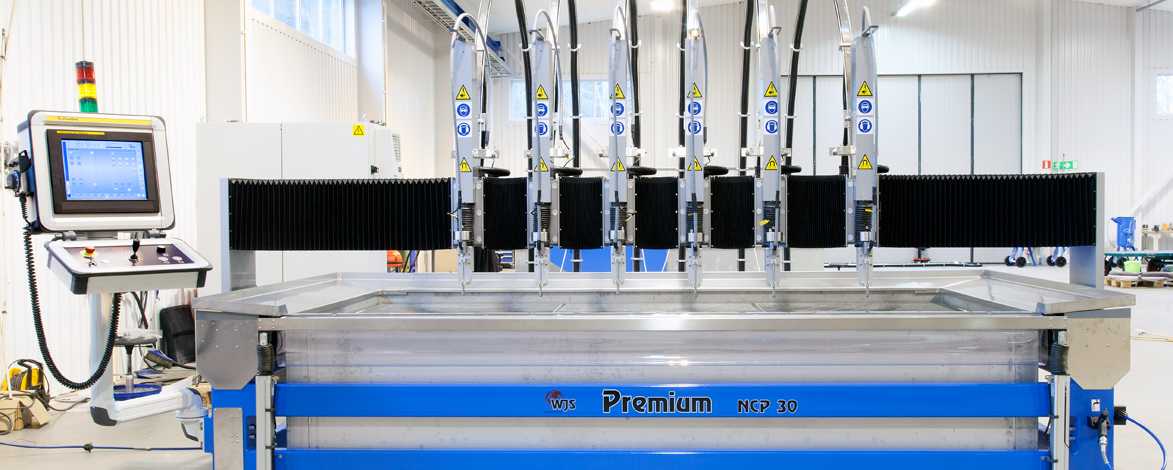

  • Multi Head CNC Controlled – cut cost by more efficient material usage and minimize production time.

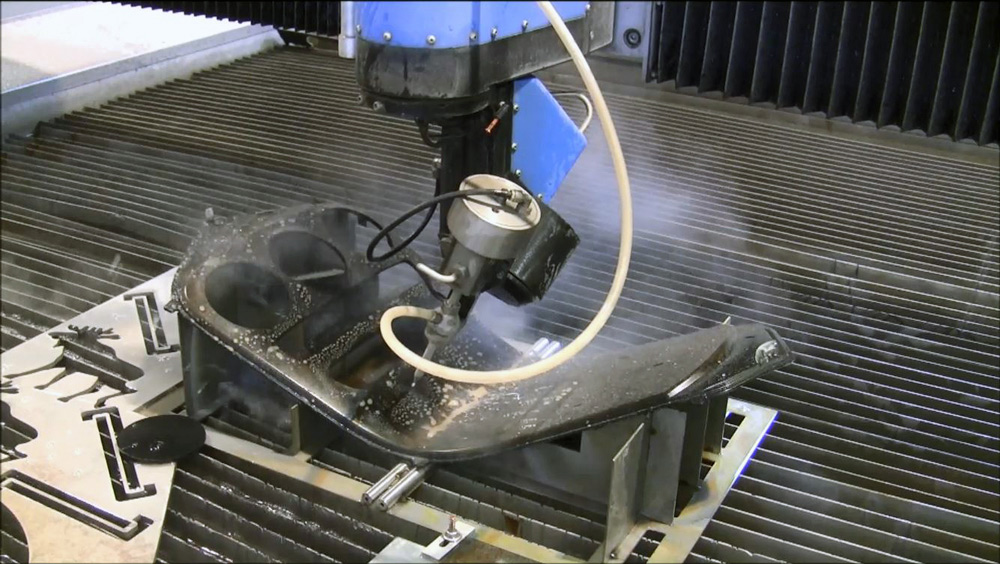

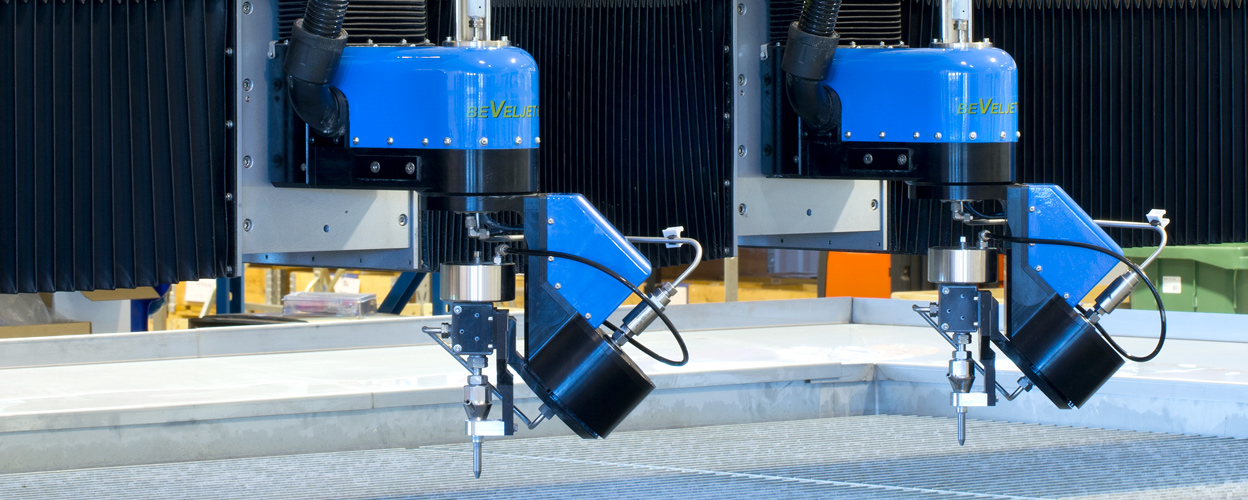

  • Beveljet®60 – Real five axis interpolation manage bevel and free form 3D cutting. A fully vector based calculation in Fanuc for TCP improve cutting quality.

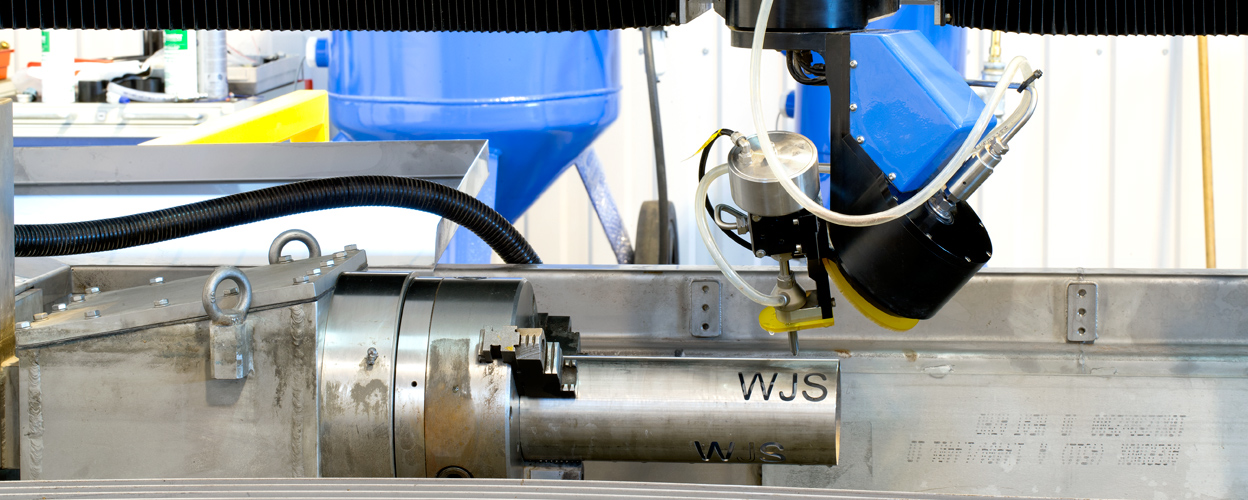

  • Turning Device – Tube cutting function fully integrated into the control system. Combine with Beveljet 60 or retrofit existing machine.

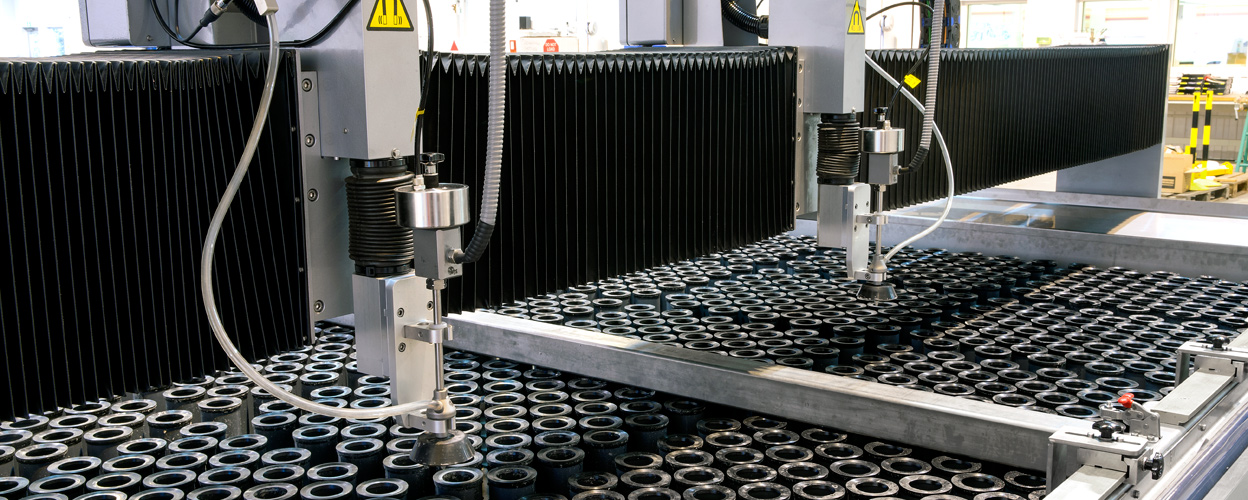

  • Table Grids – To emphasize the versatility there are a number of table grid options depending on cutting requirements.

Get a quotation

Contact

Christian Svensson

Global Sales

Specifications

Technical Data

Construction: Gantry
Frame: Welded
Cutting Table/Tank: Stainless Steel
Covers: Stainless Steel
Motion System: Linear Drive (X) and Ballscrew (Y)
Control Unit: Panel One HMI
CNC control system: Fanuc
Multiple Cutting Tools: Independent variable 2-4 tools
Process: PWJ, AWJ and FAWJ compatible
3D Cutting: WJS Beveljet®60 system
Pressure Technology: 4000 bar and 6000 bar
Working Area (m) 3×1.5 m, 3×2 m and 4×2 m
Working Area (inch) 9’10”x4’11”, 9’10x6’7” and 13’1”x6’7”

Machine Performance

Maximum Z-movement 250 mm (9.85”)
Maximum Table Load: 800-3000 kg/m2 (164 lb/ft2-624 lb/ft2)
Positioning Accuracy: ± 0.050 mm/m (±0.002”/3’3.37”)
Repetition Accuracy: ± 0.025 mm (±0.001”)

Features

Handy Operator Panel
Height sensor
Collision Sensor
Zero Point Indicator
Drilling Unit
Quick Water Level Adjustment
Jet Pen Marker System
Work Piece Indicator System (probe function)
Abrasive Delivery System with Abrasive Tower
Abrasive Level and Blockage Control
Online Abrasive Feeding
HMI Controlled Electronic Abrasive Feeder
Abrasive Removal System with Tip Container and Sediment Tank
Remote Control of HP Pump
HMI Pressure Monitoring of HP Pump
HMI Proportional Valve Pressure Control
Unmanned Operation Functions

Beveljet®60 Cutting Tool performance

Cutting Performance: 0-60°
A-axis movement: ± 90°
C-axis movement: ± 400°
Transmission accuracy A&C axis: < 1 arcmin
Repetition accuracy A&C axis: < ± 0.1 arcmin

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
