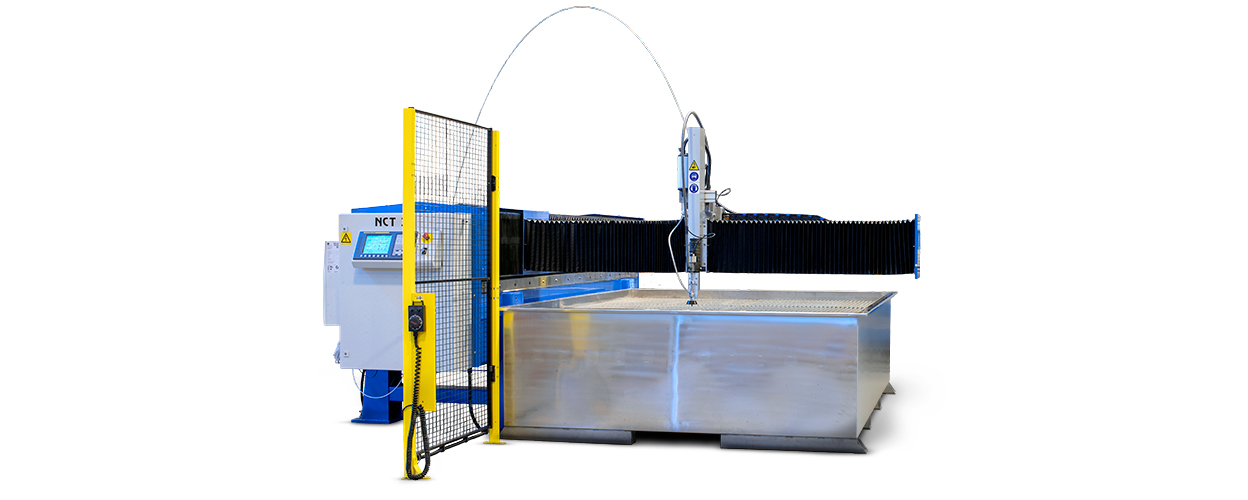

T-Model

A complete entry level cutting tool fully equipped for 2D abrasive cutting

T-model is such a rare thing as a high-performance entry level waterjet cutting machine. Built by the same people and the same quality design principles as our other machine models. The machine comes in two sizes, 2 x 3 meter or 2 x 6 m, to fit a wide range of material sizes and cutting needs. T-model, standard setup, fits any kind of industry with a need of cutting bespoke parts in different kind of materials. You cut almost any material using the same waterjet cutting tool. The T-model is designed to fit operations like prototype workshops, in-house job shops and design- and engineering workshops. But add a few optional features and you easily turn the machine into a full time industrial production tool.

Get a quotation

Contact

Christian Svensson

Global Sales

Specifications

Technical Specification

Construction: Flying Bridge
Frame: Welded Steel Beams
Cutting Table/Tank: Stainless Steel
Covers: Satainless Steel / Bellow
Motion System: Ballscrew

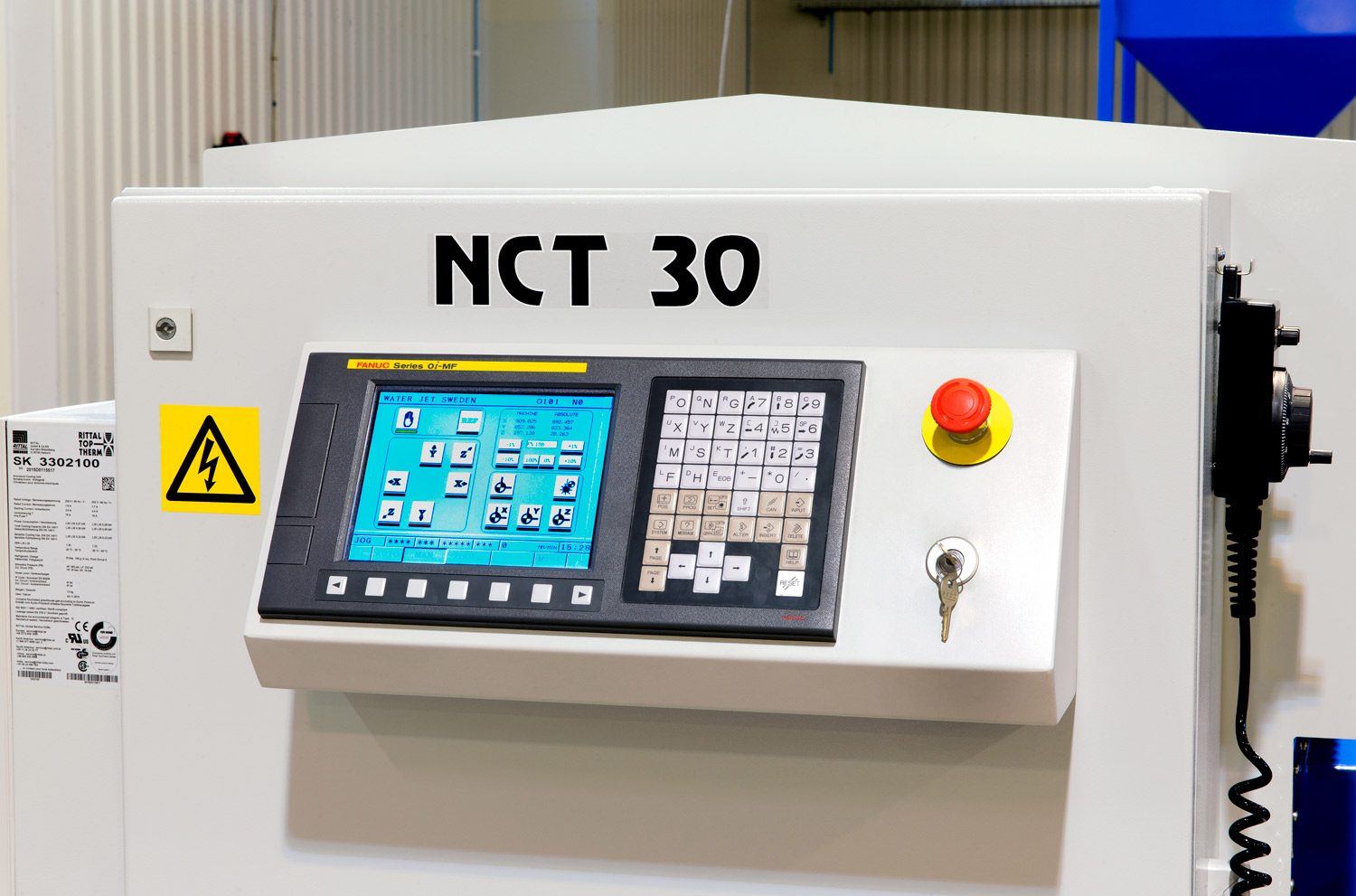

Controll Unit Fanuc 8.5" Touch Screen
CNC Control System Fanuc
CAD/CAM IGEMS

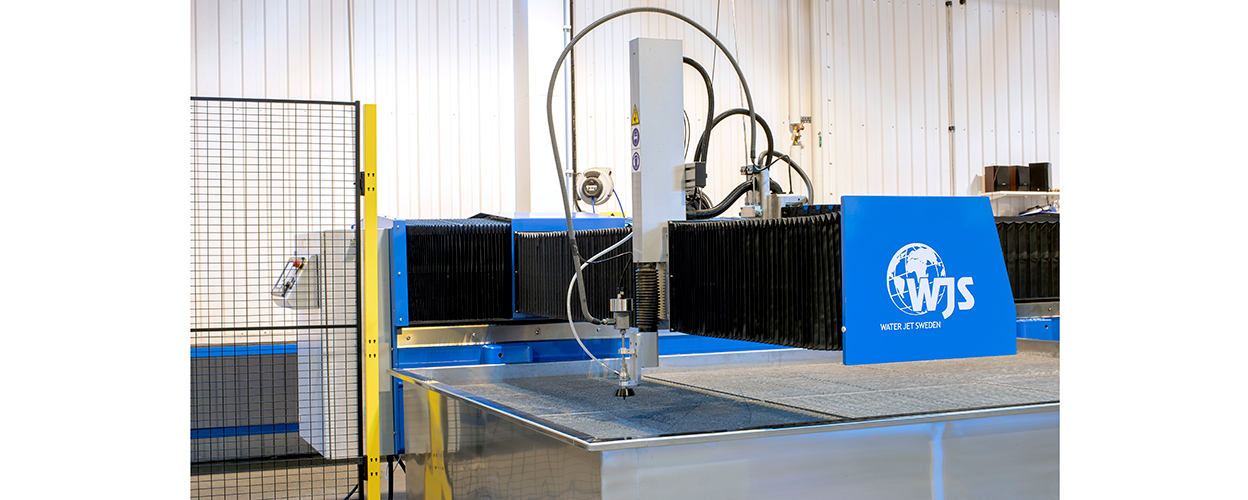

Cutting Heads: One
Cutting Processes: AWJ/PWJ
Pressure Technology 4000 bar and 6000 bar

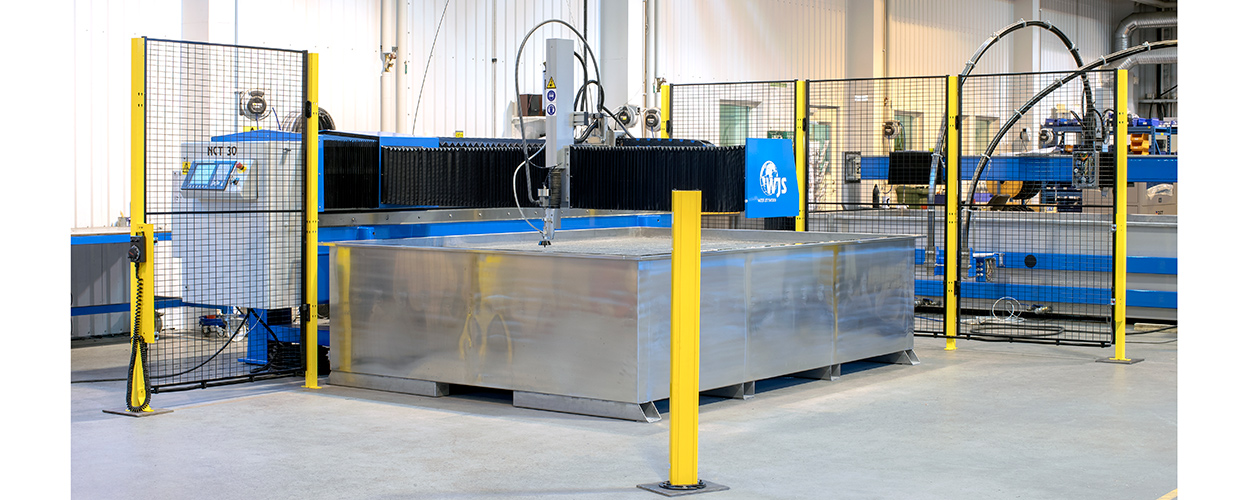

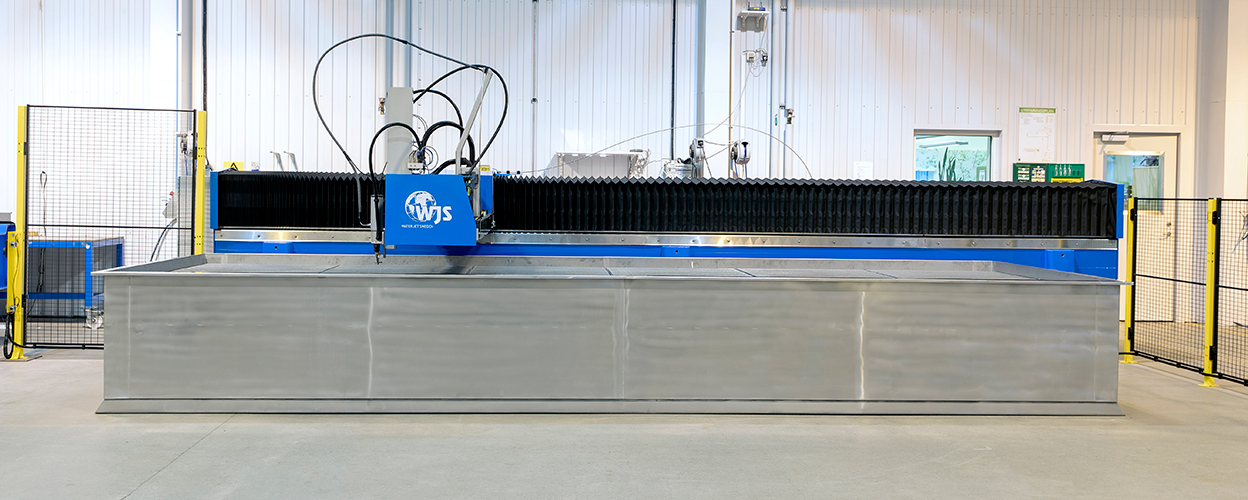

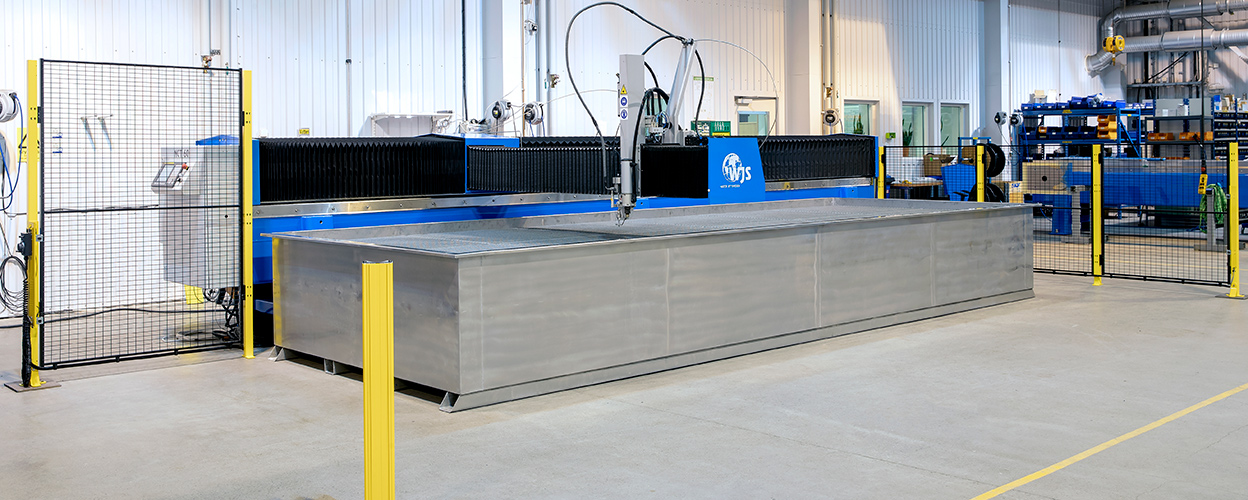

Machine sizes (m) 2 x 3 m and 2 x 6 m
Machine sizes (inch) 6’7x9’10” and 6’7”x19’8”

Machine Performance

Maximum Z-movement: 200 mm (7.87”)
Maximum Table Load: 1200 kg/m2 (246 lb/ft2)
Positioning Accuracy: ± 0.05 mm/m (±0.002”/3’3.37”)
Repetition Accuracy: ± 0.025 mm (±0.001”)

Features

Head Protection Package
Drilling Tool
Abrasive Supply System
Abrasive Tower 1 ton
Online Pressure Vessel
Abrasive Removal System
Abrasive Monitoring Package
Remote Operator Software
CAD/CAM Plugins
Water Softener
4000 bar pump upgrade
6000 bar upgrade package

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.

    Specify your needs

    Material

    Number of cutting head

    The size of working zone

    Precision cutting

    Cutting thickness

    Cutting type
