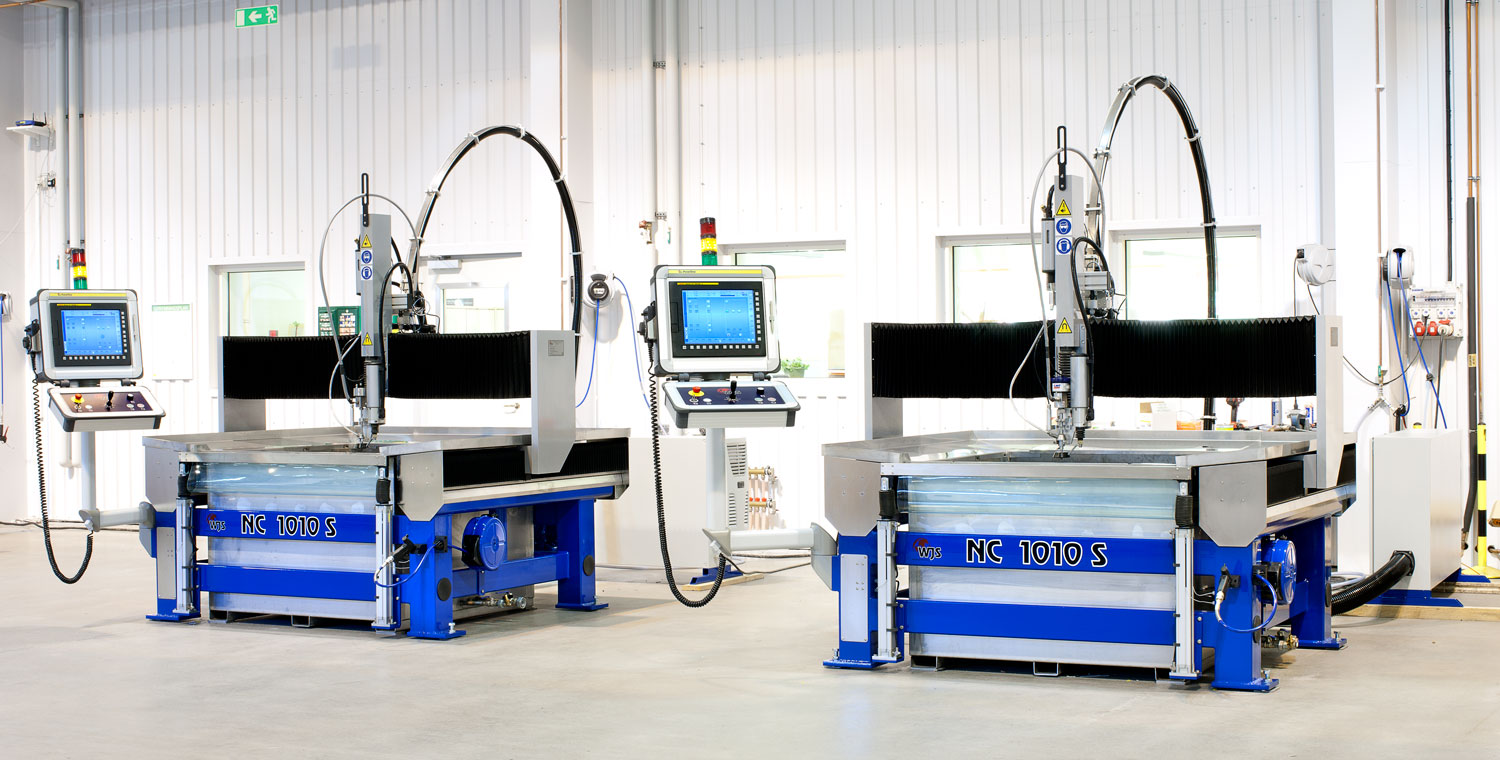

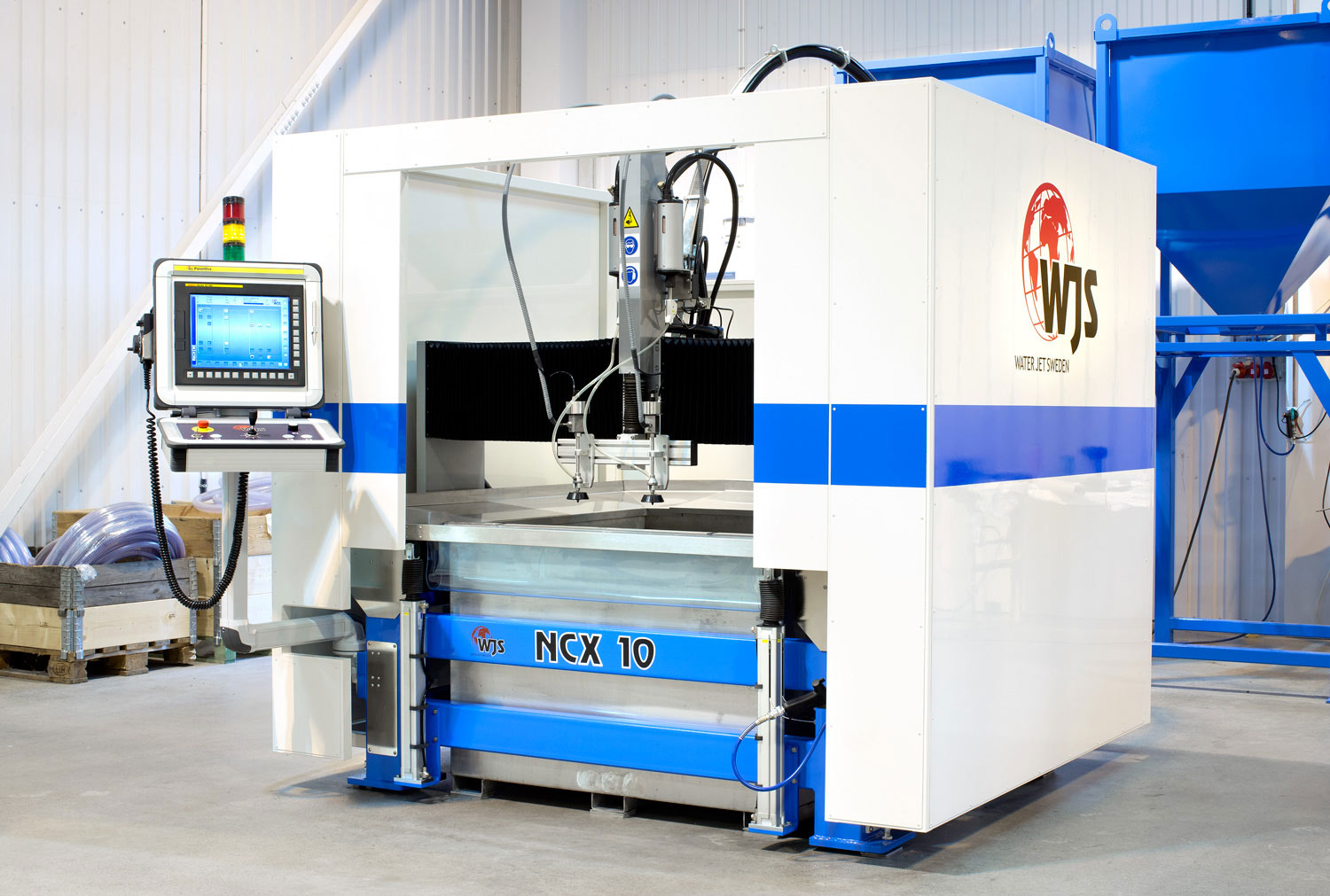

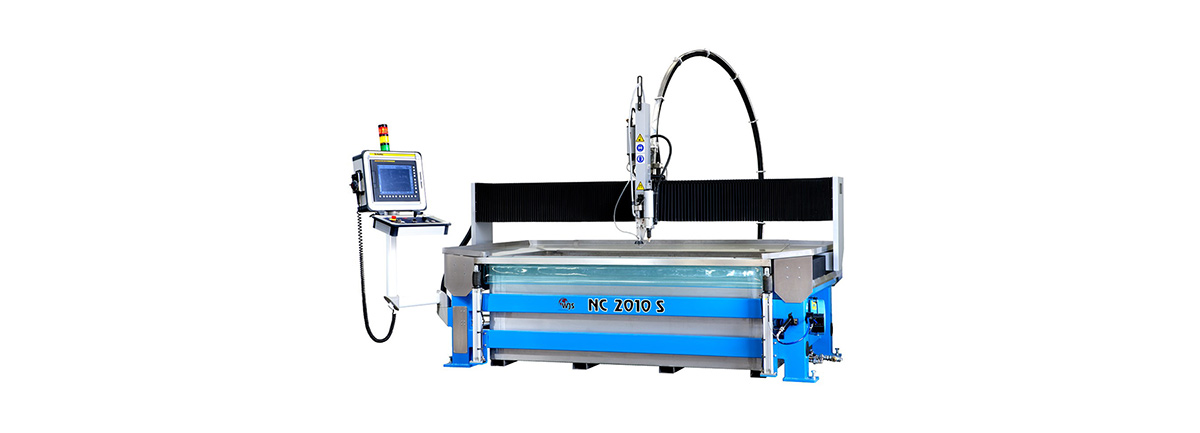

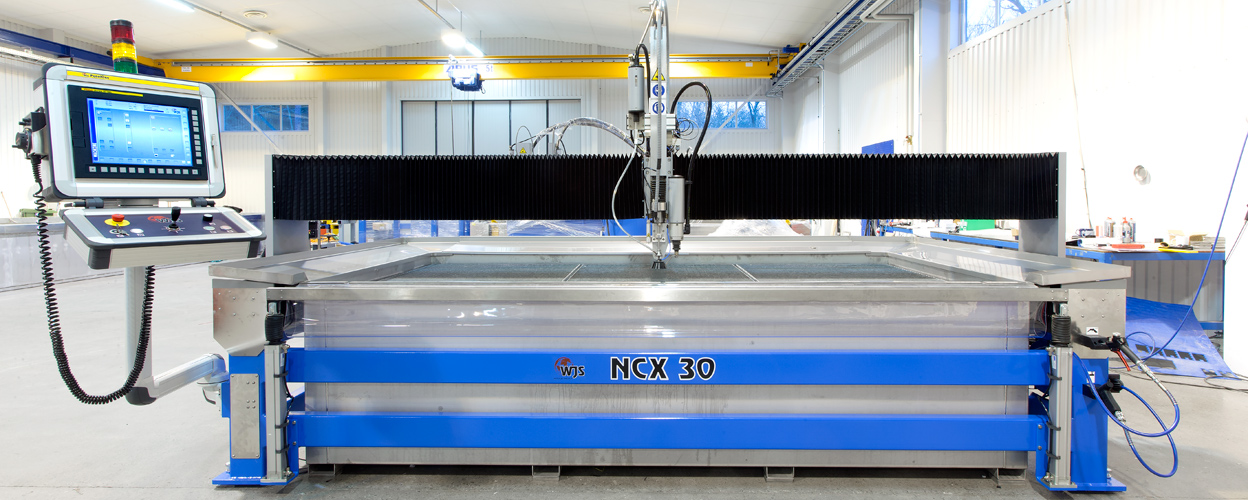

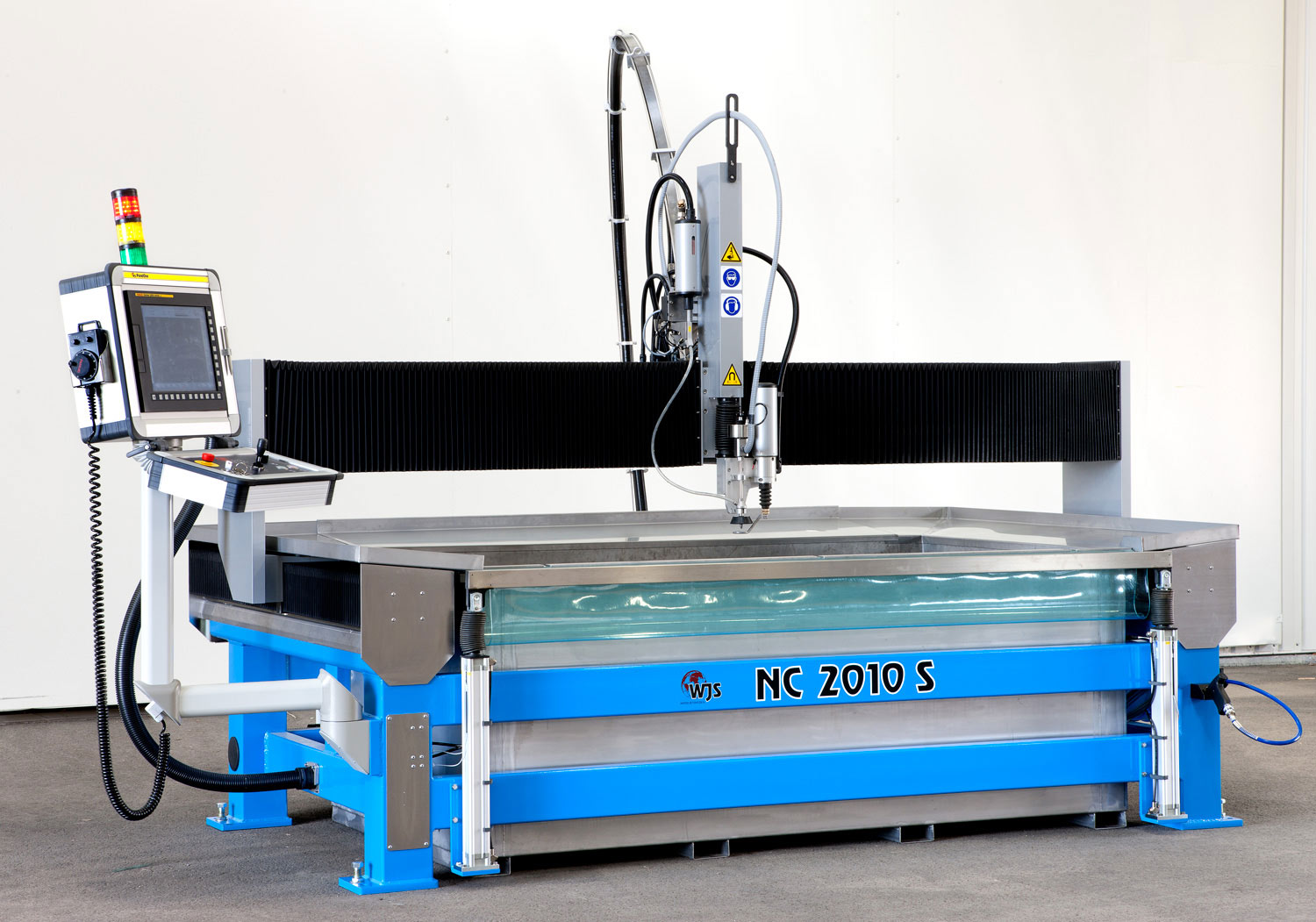

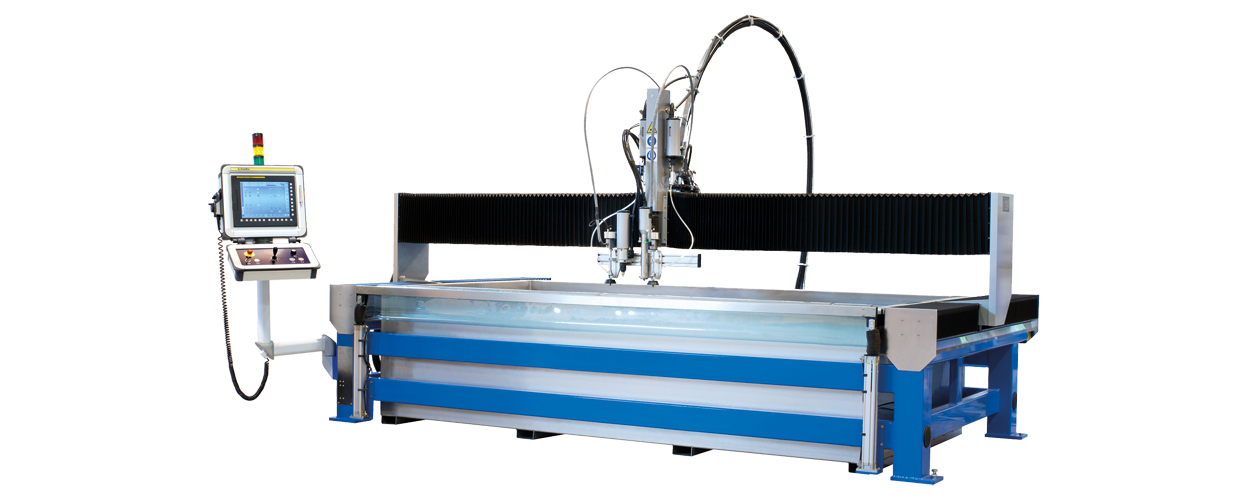

X-series

A fundamental Select model for high performance 2D cutting machine tool

The X-series is commonly used for in house production and small production series. It has all the basic features you need for high precision 2D cutting, for both 4000 or 6000 bar technologies.

The X-series machine has a single Z-movement where multiple cutting heads (PWJ) or a second cutting head (AWJ) can be applied on a beam. There are a number of operational functions and tools available as standard options.

Get a quotation

Contact

Christian Svensson

Global Sales

Specifications

Technical Data

Construction: Gantry
Frame: Welded
Cutting Table/Tank: Stainless Steel
Motion System: Ballscrew
Control Unit: Panel One HMI
CNC control system: Fanuc
Process: PWJ, AWJ and FAWJ compatible
Pressure Technology: 4000 bar and 6000 bar
Machine sizes (m): 1×1 m, 2×1 m, 3×1.5 m, 3×2 m and 4×2 m
Machine sizes (inch): 3’3”x3’3”, 6’7 x3’3”, 9’10”x4’11”, 9’10x6’7” and 13’1”x6’7”

Performance

Maximum Z-movement: 250 mm (9.85”)
Maximum Table Load: 800 kg/m2 (164 lb/ft2)
Positioning Accuracy: ± 0.050 mm/m (±0.002”/3’3.37”)
Repetition Accuracy: ± 0.025 mm (±0.001”)

Standard options

Second abrasive cutting head (beam)
Drilling Unit
Zero Point Indicator
Work Piece Indicator (probe function)
Height Sensor, Collision Sensor
Unmanned Operation Functions
Quick Clamping
Online or manual abrasive feeding systems
Waste and water handling systems
HMI Remote Control of HP Pump and HMI Pressure Monitoring of HP Pump.

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
