H-model

A straight forward water jet system for full time 2D abrasive cutting

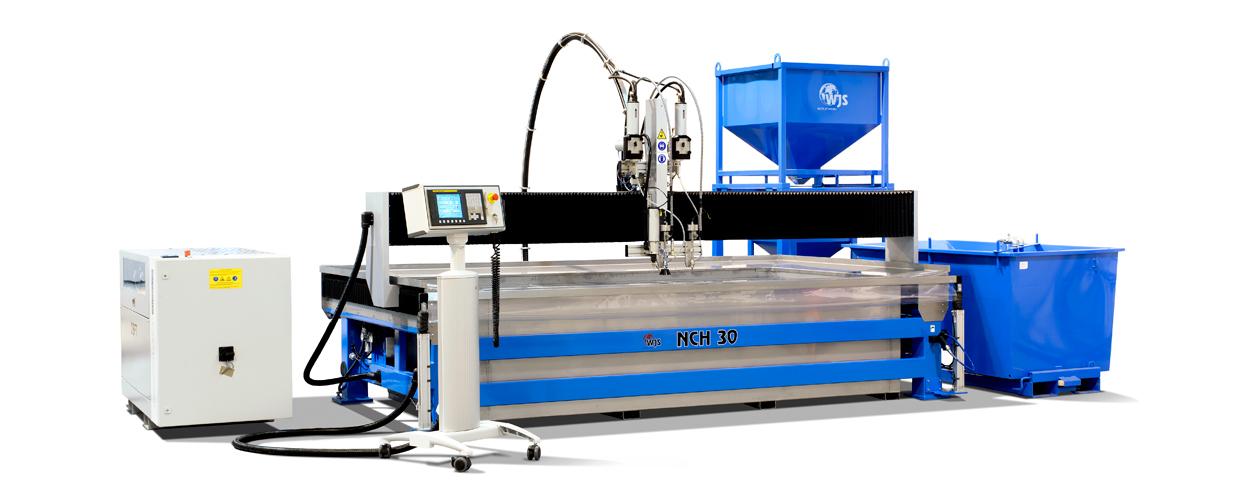

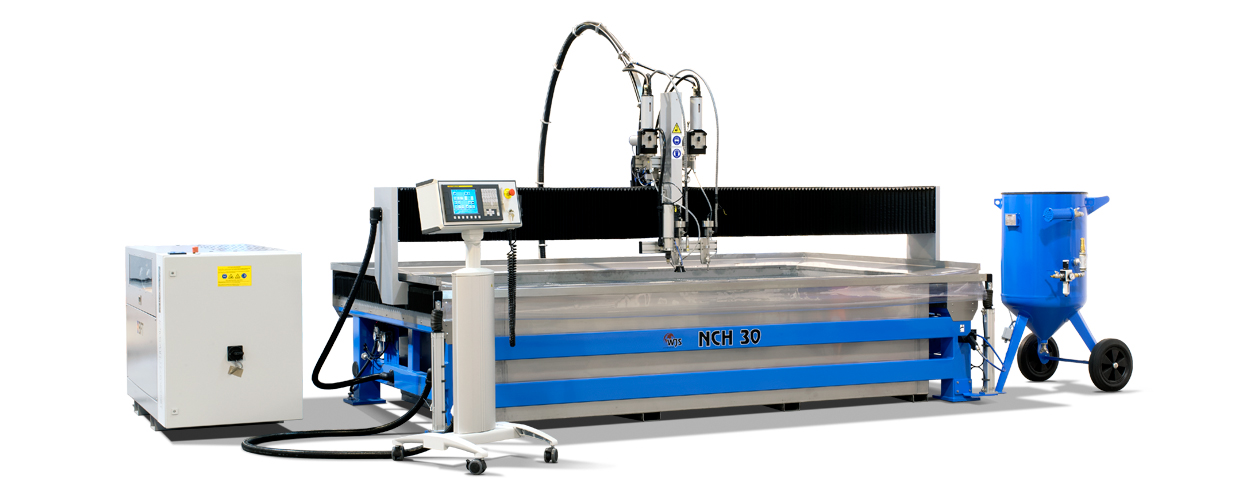

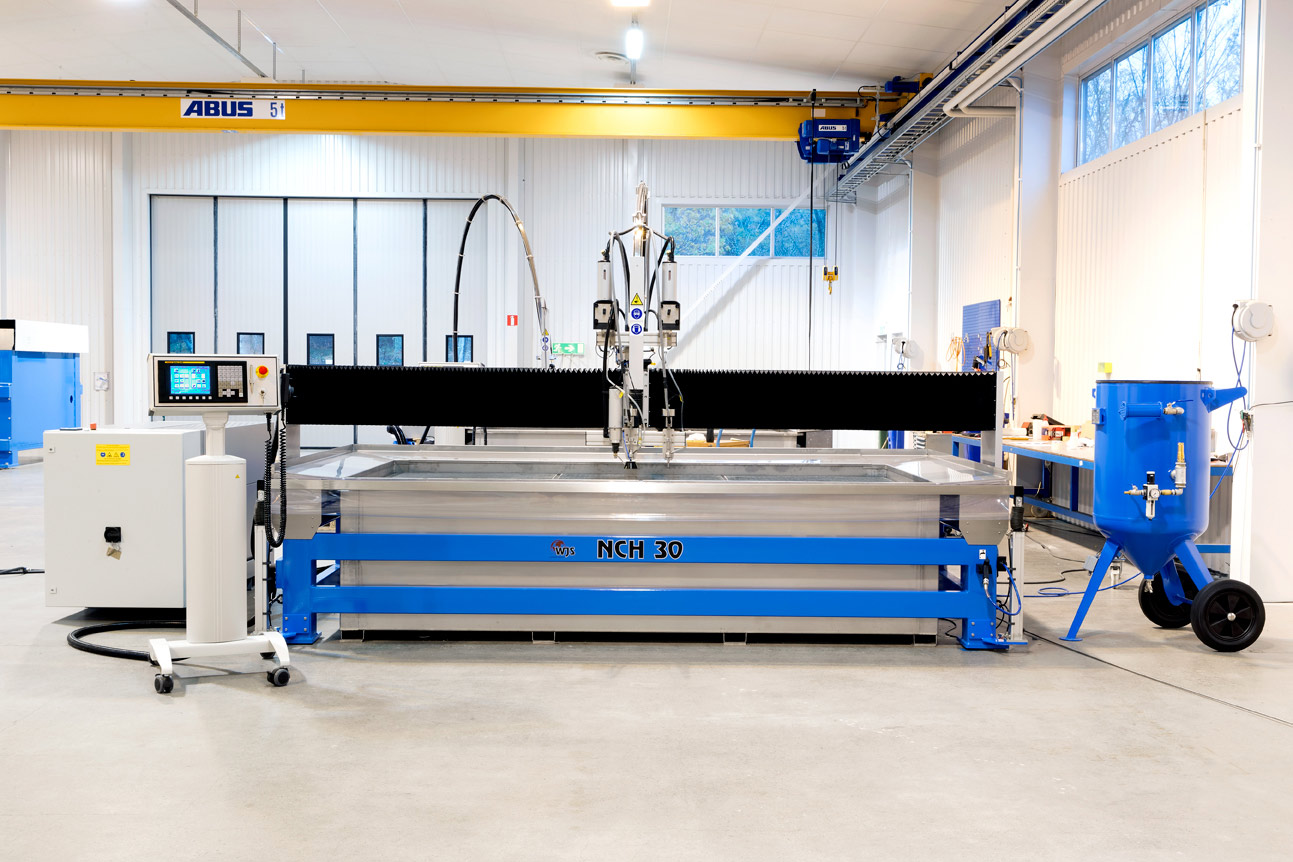

The H-model is a straight forward 2D quality waterjet cutting system. The machine system is based on Water Jet Sweden world patented gantry design for long life and consistent performance. The H-model is a multi-purpose cutting tool suitable for prototype workshops, spare part- or in-house job shops as well as industry plants or contract cutting shops.

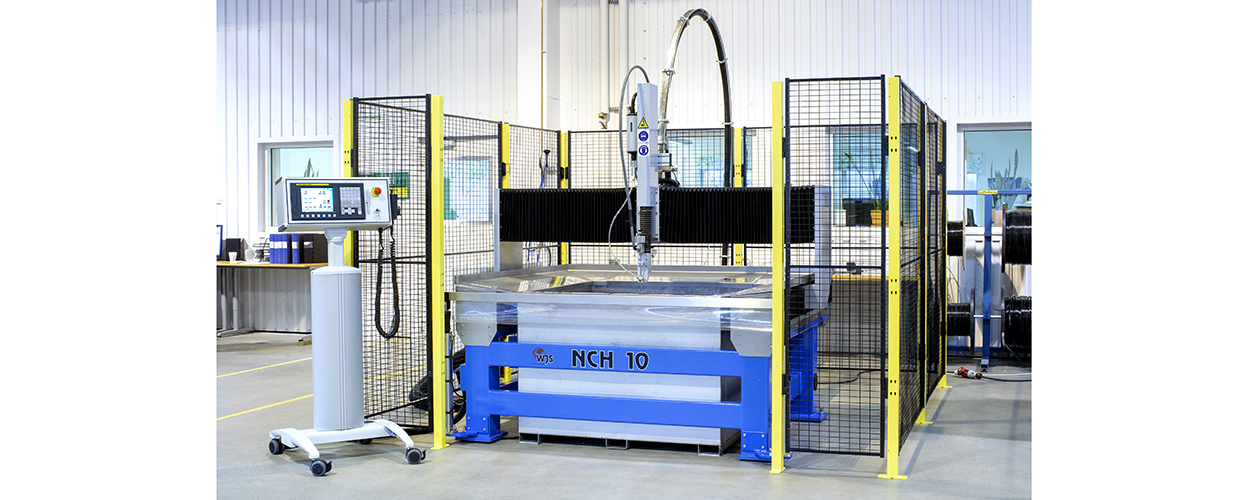

The H-model is available in three different table sizes, 1 x 1 meter, 2 x 1 meter, 3 x 1.5 meter.

Get a quotation

Contact

Christian Svensson

Global Sales

Specifications

Technical Data

Construction: Gantry
Frame: Welded Steel Beams
Cutting Table/Tank: Stainless Steel
Covers: Bellows
Motion System: Ballscrew

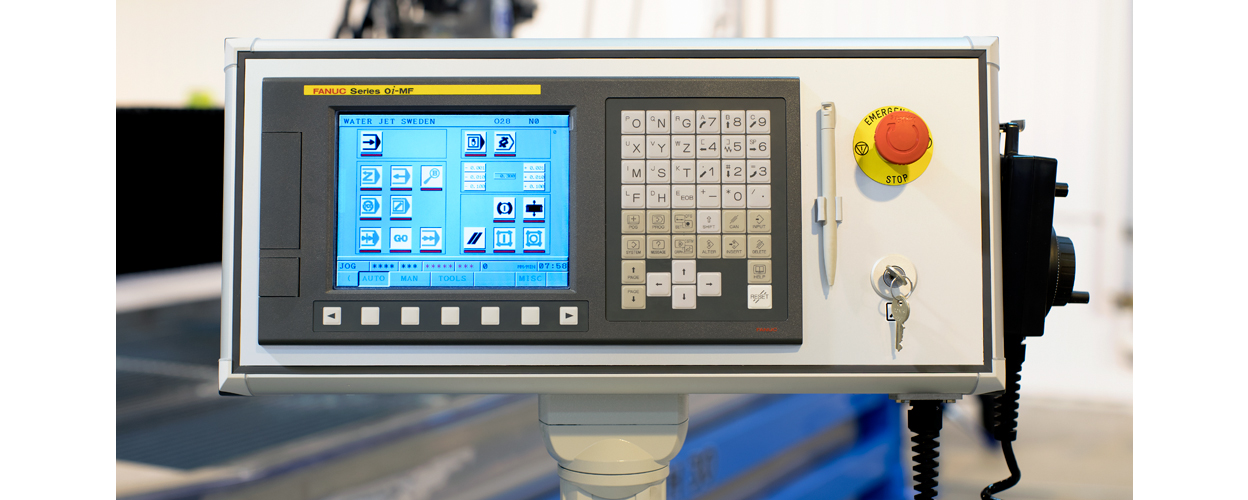

Operator Panel Fanuc 8.5" Touch Screen
CNC Control System Fanuc
CAD/CAM Software IGEMS
Cutting Tools 1-2
Process: AWJ/PWJ
Pressure Technology 4000 and 6000 bar
Working Area (m) 1 x 1 m, 1 x 2 m and 3 x 1,5 m
Working Area (inch) 3’3”x3’3”, 6’7 x3’3” and 9’10”x4’11

Performance

Maximum Z-movement: 250 mm (9.85”)
Maximum Table Load: 1200 kg/m2 (246 lb/ft2)
Positioning Accuracy: ± 0.05 mm/m (±0.002”/3’3.37”)
Repetition Accuracy: ± 0.025 mm (±0.001”)

Features

Head Protection Package
Drilling Tool
Abrasive Supply System
Abrasive Tower 1 ton
Online Pressure Vessel
Abrasive Removal System
Abrasive Monitoring Package
Remote Operator Software
CAD/CAM Plugins
Water Softener
4000 bar upgrade
6000 bar upgrade package
Duo Head 4000 bar Upgrade Package
Duo Head 6000 bar Upgrade Package

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
