Grand

Robust, heavy duty waterjet cutting system, for all shapes, and large or odd sizes

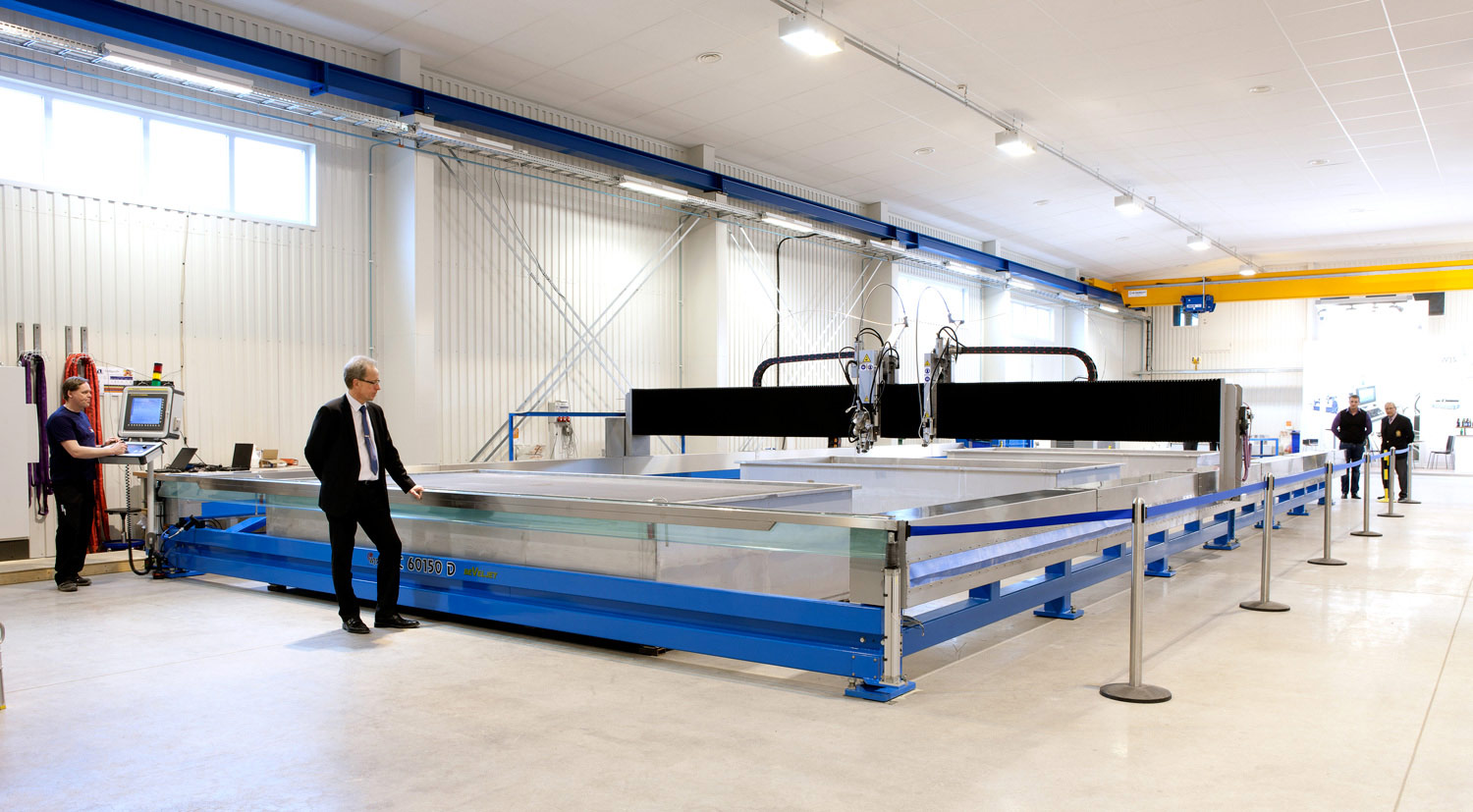

Extremely versatile with a wide range of design options. Grand offer the largest tables sizes with a robust heavy-duty design to manage large and odd size materials. Thanks to our worldwide patented guide system all machines have the same tolerance, independent of size. You get the same high performance from a 12 meter machine as from a 2 meter machine.

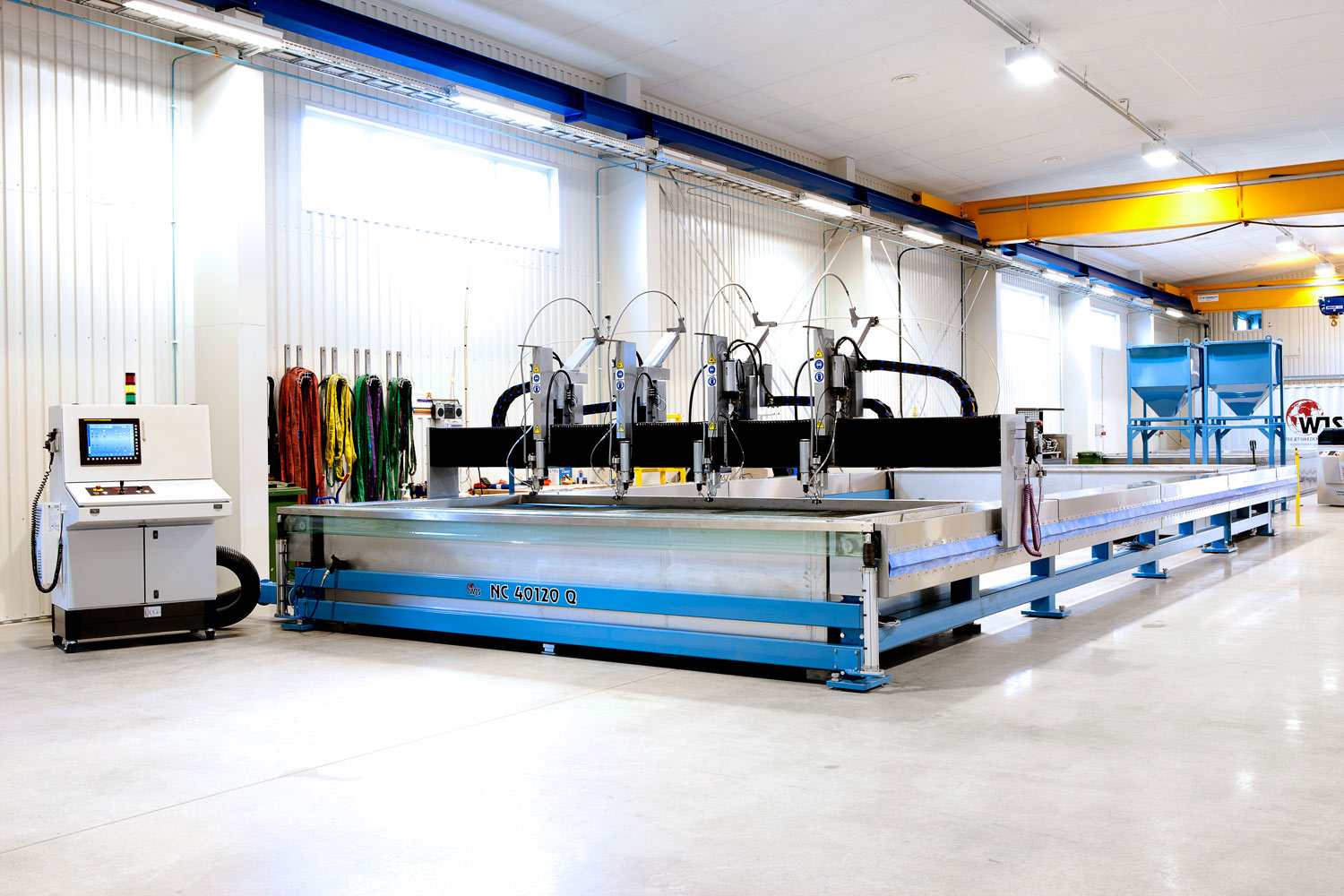

The Grand machines popular in specialized job shops and as workstation in industry production lines. Each machine is tailored to fit the customer process requirements, easily adopted for multi-job processing and unmanned operations.

Characteristics:

  • Protective Design Features – side mounted motion system enable safe handling of large and heavy materials and heavy duty stainless steel covers protect from impact.
  • Efficient Job Handling – access from three sides enable easy loading and unloading and Zone Divided Worktable option make it possible to exchange jobs while processing.
  • Heavy Duty Production Options – To avoid backlash and support thick and heavy materials there are options like Quick Water Level Adjustment and different table grids.
  • Beveljet®60 – Real five axis interpolation to manage bevel and free form 3D cutting. A fully vector based calculation in Fanuc for TCP improve cutting quality. Combine with one or several 2D cutting heads.

Get a quotation

Contact

Christian Svensson

Global Sales

Specifications

Technical Data

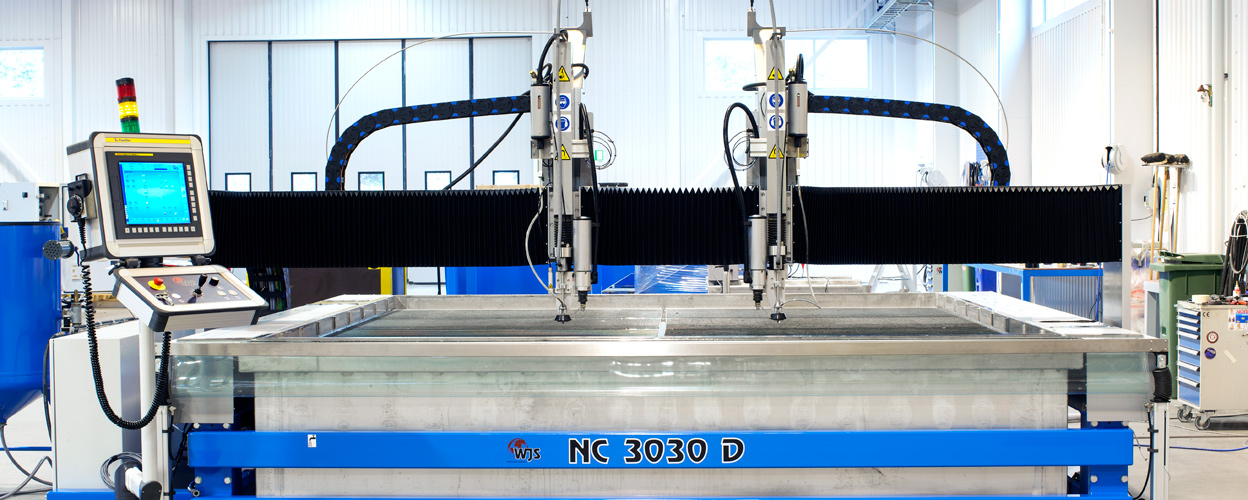

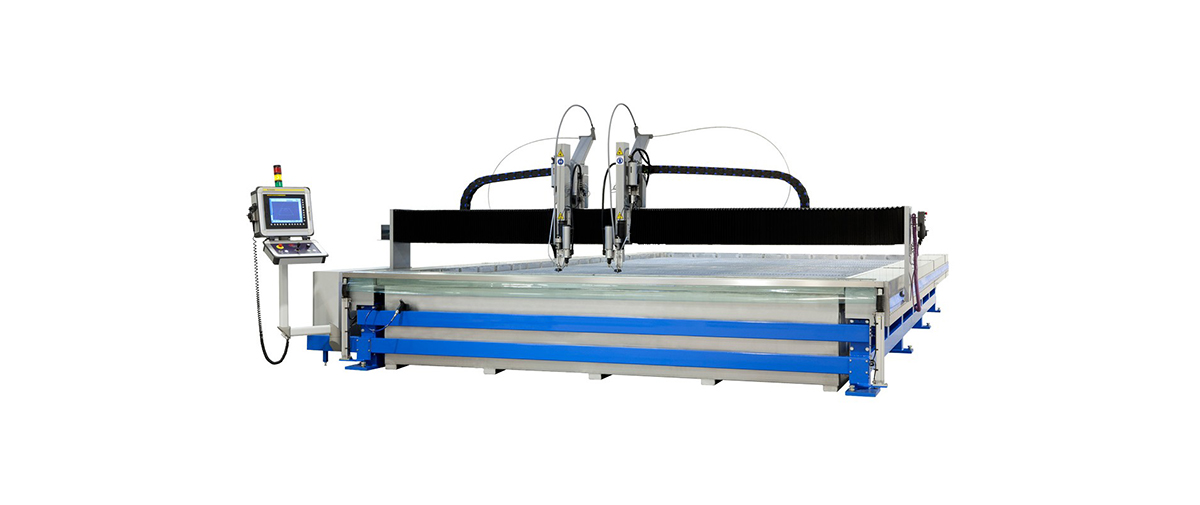

Construction: Gantry
Frame: Heavy Duty
Cutting Table/Tank: Stainless Steel
Covers: Heavy Duty Stainless Steel
Motion System: Linear Drive (X) and Ballscrew (Y)
Control Unit: Panel One HMI
CNC control system: Fanuc

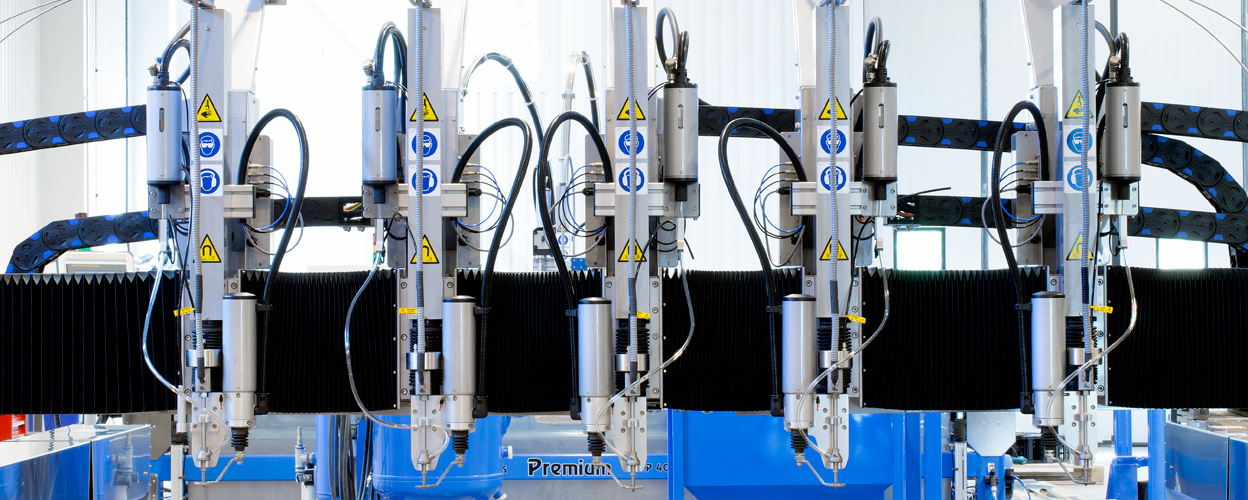

Multiple Cutting Tools: Independent variable 2-4 tools
Process: PWJ and AWJ
3D Cutting: WJS Beveljet®60 system
Pressure Technology: 4000 bar and 6000 bar
Machine width (X): 2.5-6 m (8’2.43”-- 19’8.22”) as standard
Machine length (Y): 3-12 m (9’10.11”-39’4.44”) as standard

Machine Performance

Maximum Z-movement: 250 mm (9.85”)
Maximum Table Load: 800-3000 kg/m2 (164 lb/ft2-624 lb/ft2)
Positioning Accuracy: ± 0.050 mm/m (±0.002”/3’3.37”)
Repetition Accuracy: ± 0.025 mm (±0.001”)

Features

Handy Operator Panel
Collision Sensor
Drilling Unit
Height sensor
Zero Point Indicator
Jet Pen Marker System
Work Piece Indicator System (probe function)
Quick Water Level Adjustment
Zone Divided Work Table
Abrasive Delivery System with Abrasive Tower
Abrasive Level and Blockage Control
HMI Controlled Electronic Abrasive Feeder
Abrasive Removal System with Tip Container and Sediment Tank
HMI Remote Control of HP Pump
HMI Pressure Monitoring of HP Pump
HMI Proportional Valve Pressure Control
Unmanned Operation Functions

Beveljet®60 Cutting Tool performance

Cutting Performance: 0-60°
A-axis movement: ± 90°
C-axis movement: ± 400°
Transmission accuracy A&C axis: < 1 arcmin
Repetition accuracy A&C axis: < ± 0.1 arcmin

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
