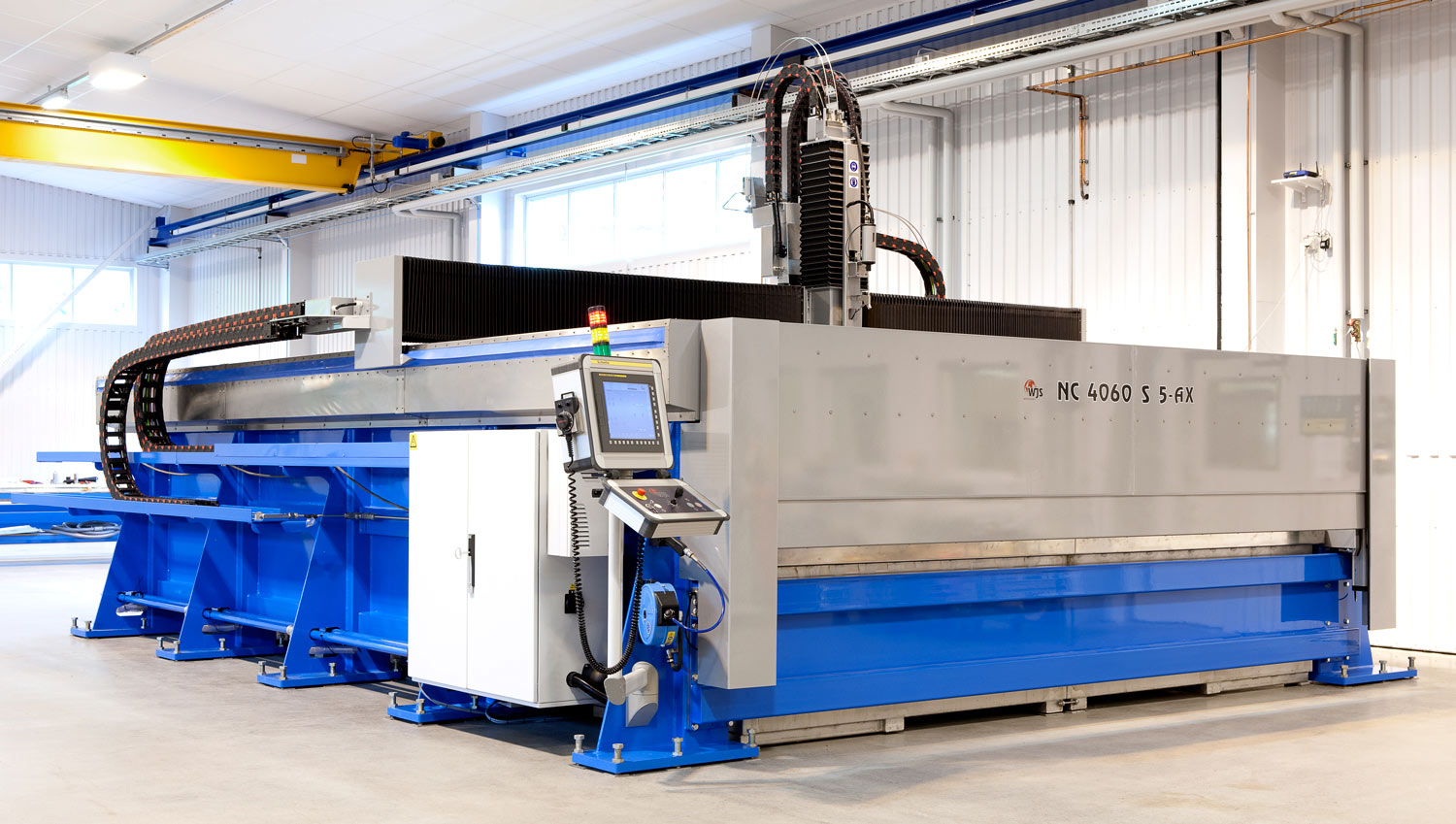

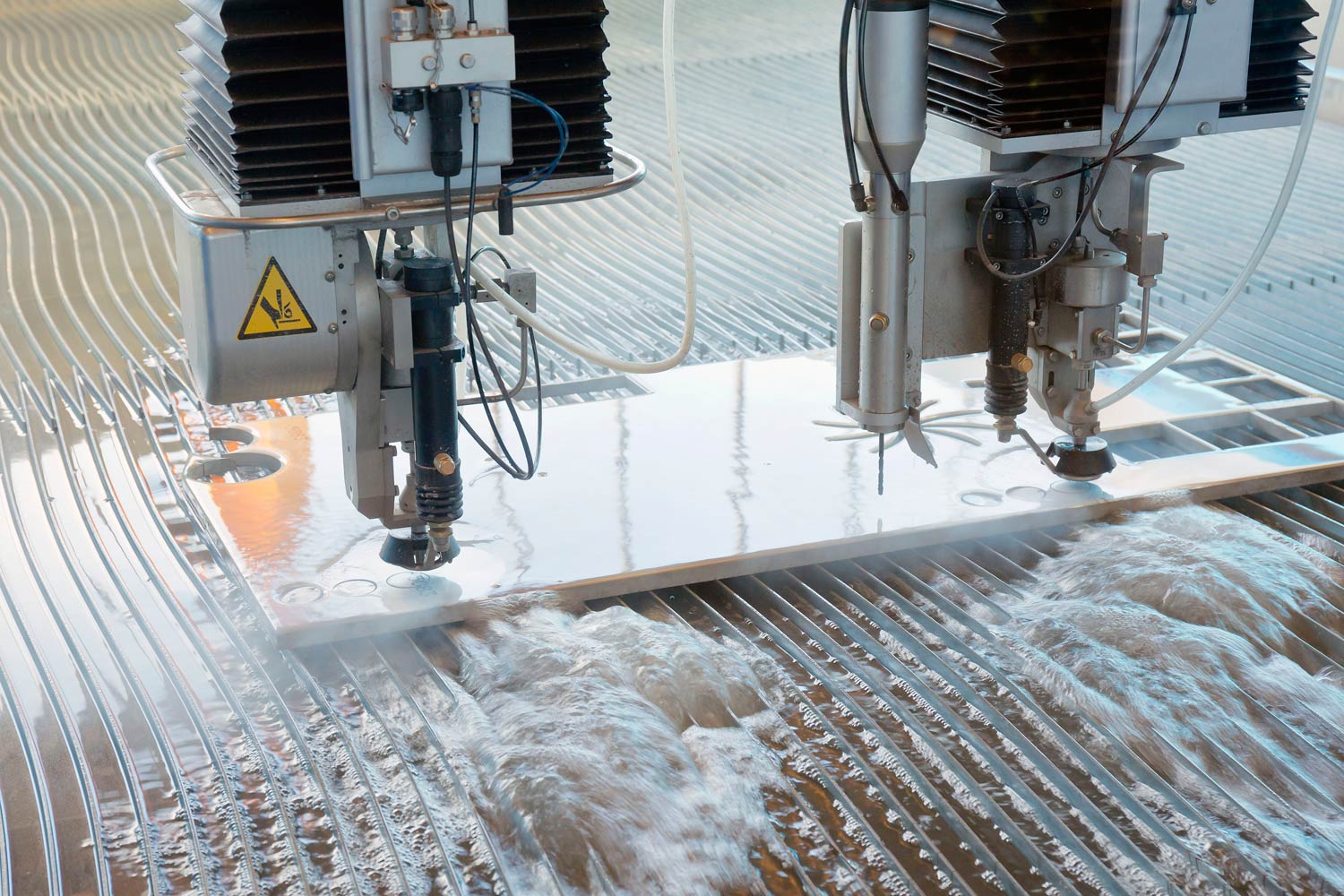

FiveX / FiveX Ultra

Forefront technology for advanced free form cutting

FiveX machines are commonly used in high tech industry sectors, built with our most advanced technology and with an exceptional stable design to be able to repeatedly perform high precision free form cutting of full 3D components.

Large-scale 5-axis processing allows the advantages of the waterjet process to be utilized in the finishing of fabricated structures, pressed parts, molded composite parts and other 3-D parts. With Z-Axis capacities up to 1500 mm and a generous working area, the waterjet technology has been embraced largely by the Defense Industry, Space Industry, Aerospace Industry and Power Industry. FiveX Ultra is more compact and suitable for high-tech mechanical workshops in general. Designed materials such as Hardened Steel, Titanium, Kevlar and Carbon Fiber can easily be cut to precise form. Applications include trimming of molded parts into their final shape.

Characteristics:

  • Free form cutting – utilize free form cutting with an exceptionally long Z-movement up to 1500 mm. specially designed fixturing tables on request.
  • Intelligent Probe Interface – The Work Piece Indicator (Renishaw Probe Interface) is integrated with a large library of pre-designed measurement cycles, and customized measurement cycles can be delivered as an option.
  • Customer-specific fixtures – if there is a need, we create fixtures according to the customers’ specific cutting needs, as part of the total solution.



Contact

Peter Rüdén

Global Sales

Christian Svensson

Global Sales

Specifications

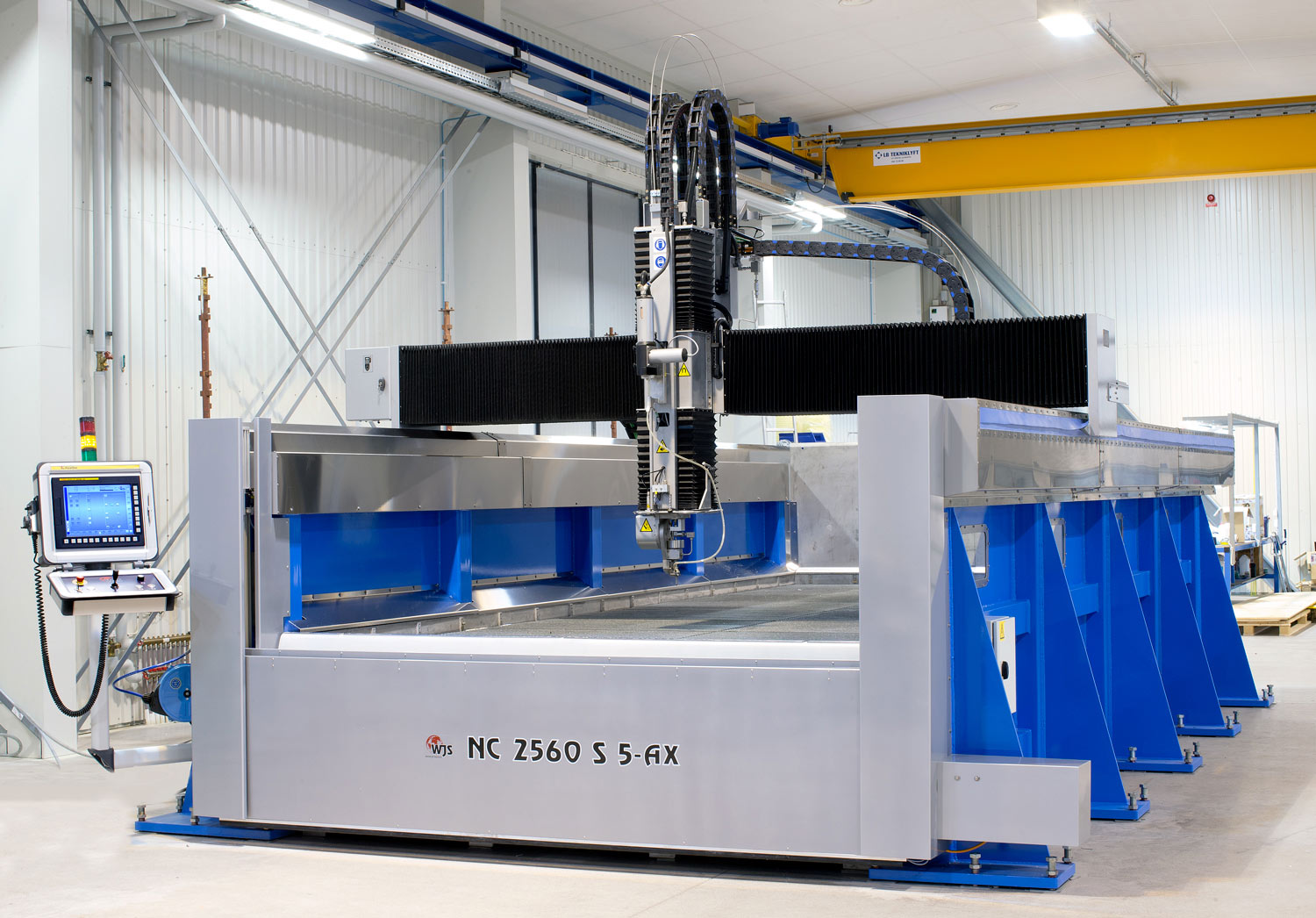

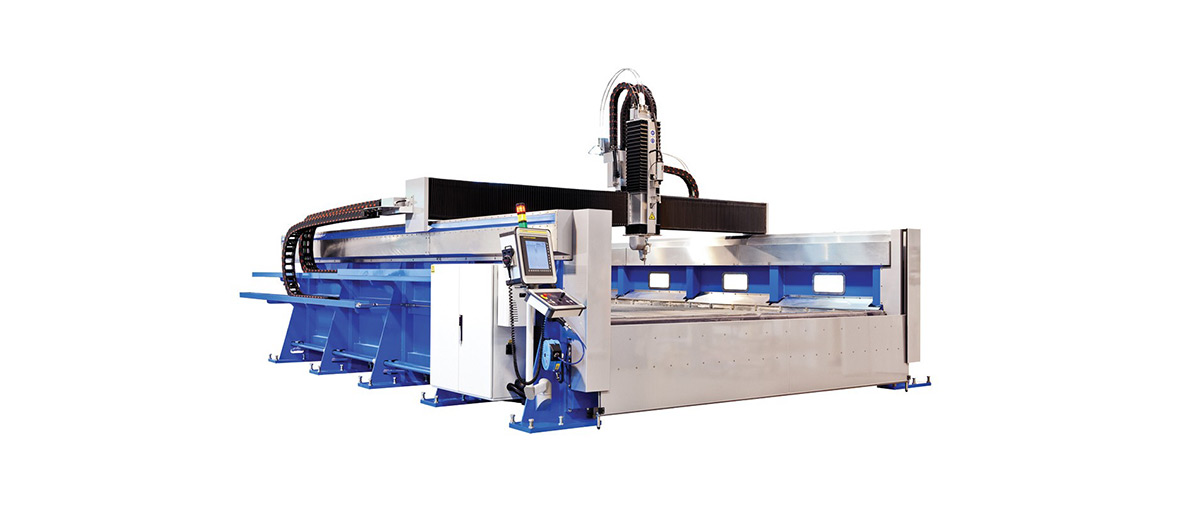

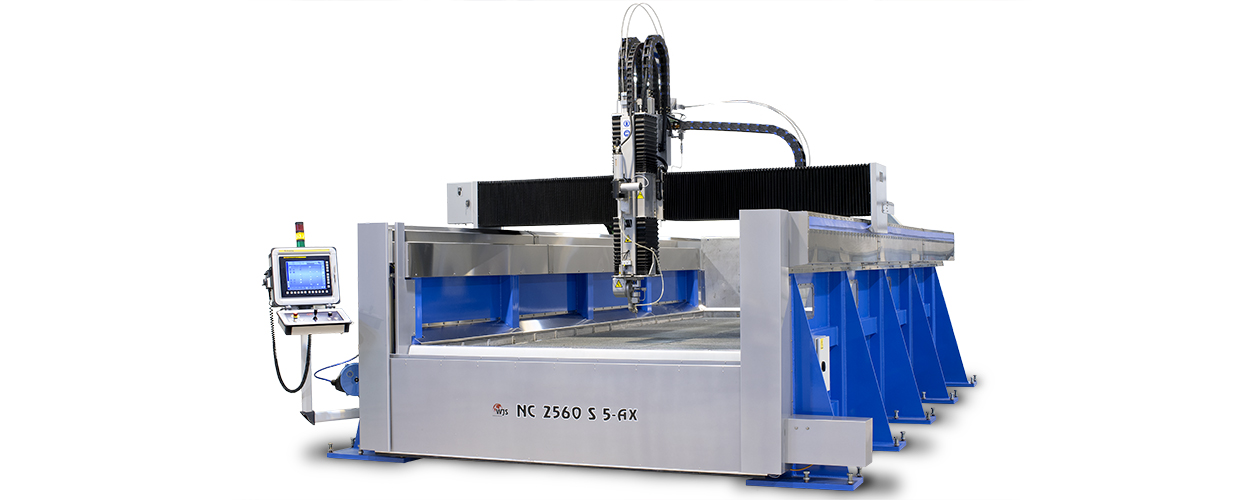

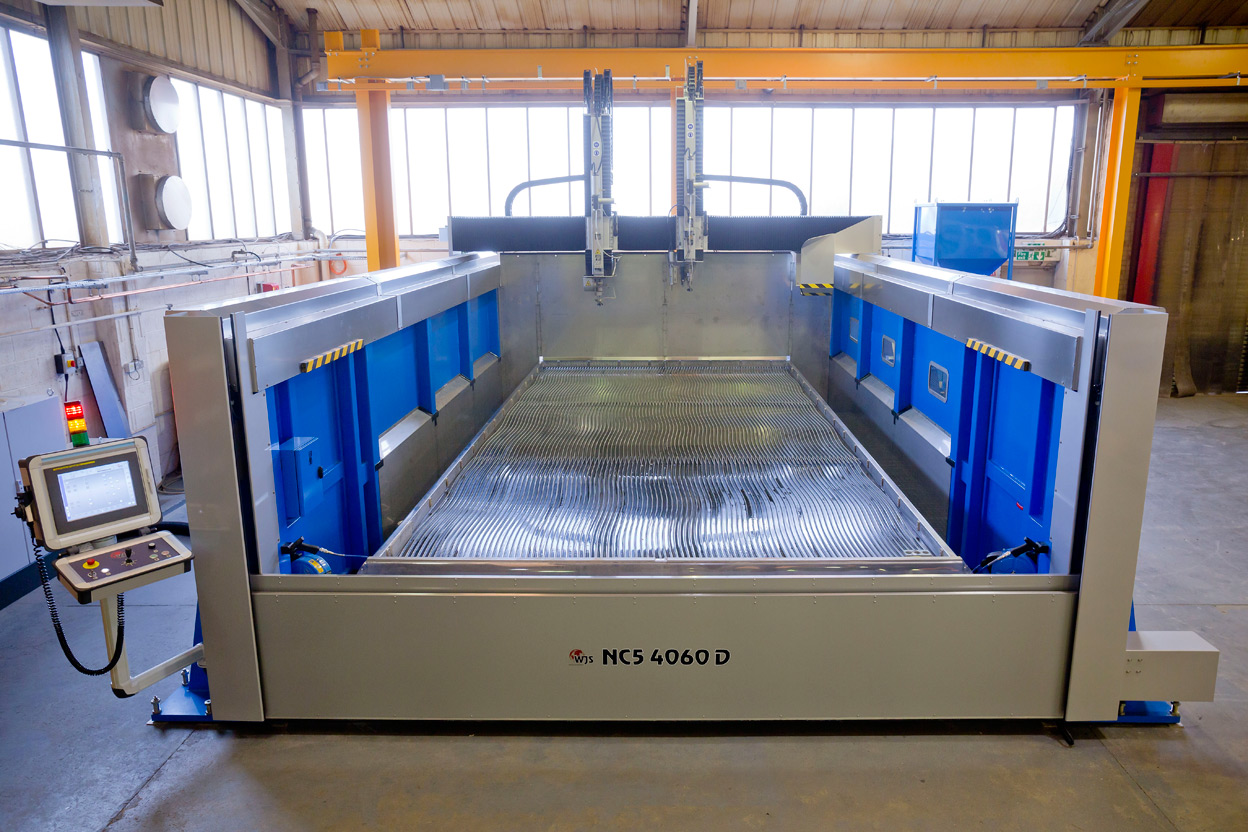

Technical Data FiveX

Construction: Gantry
Frame: Heavy-Duty, full size walls
Cutting Table/Tank: Forged grid / Stainless Steel
Covers: Stainless Steel Protection Covers
Motion System: Linear Drive (X) and Ballscrew (Y)
Control Unit: Panel One HMI
CNC control system: Fanuc
Process: AWJ
3D Cutting: WJS 5AX
Pressure Technology: 4000 bar and 6000 bar (60 000 and 90 000 PSI)
Machine width (X): 2.5-4 m (8’2.43”-13’1.48”) as standard
Machine length (Y): 2-6 m (6’6.74”-19’8.22”) as standard
Maximum Z-movement: 1500 mm (59.055”)

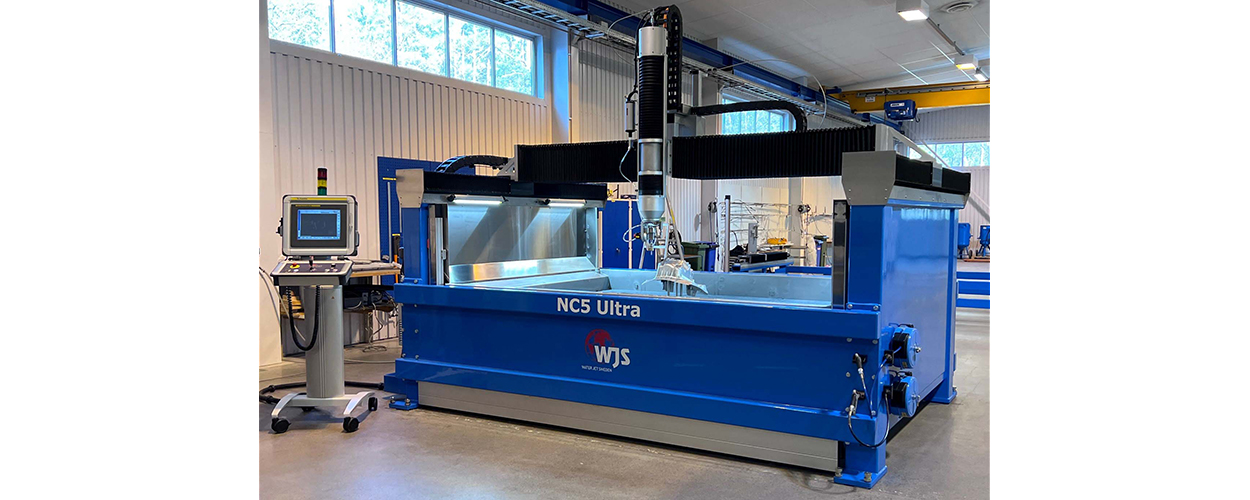

Technical Data FiveX Ultra

Construction: Gantry Machine
Frame: Heavy-duty, full-size walls
Cutting Table/Tank: Forged grid table / Stainless steel tank
Covers: Fanuc Dual Check safety with integrated front/back covers
Motion System: Ballscrew
Control Unit: Panel One HMI
CNC control system: Fanuc
Process: AWJ
3D Cutting: WJS 5AX Ultra
Pressure Technology: 4200 bar (60 000 PSI)
Work table: 2880 x 2275 mm (9ft 5.4in x 7ft 5.6in)
Work area 2D (X, Y, Z): 2400 x 1710 x 540 mm (7ft 10.5in x 7ft 5.5in x 1ft 9.3in)
Work space 3D (X, Y, Z): 2080 x 1390 x 650 mm (6ft 9.9in x 4ft 6.7in x 2ft 1.6in)

Performance

Positioning Accuracy: ± 0.050 mm/m (±0.002”/3’3.37”)
Repetition Accuracy: ± 0.025 mm (±0.001”)
Cutting Performance: 0-120°
A-axis movement: ±120°
C-axis movement: ± 220° (FiveX Ultra ± 400°)
Transmission accuracy A&C axis: < 1 arcmin
Repetition accuracy A&C axis: < ± 6 arcsec

Features

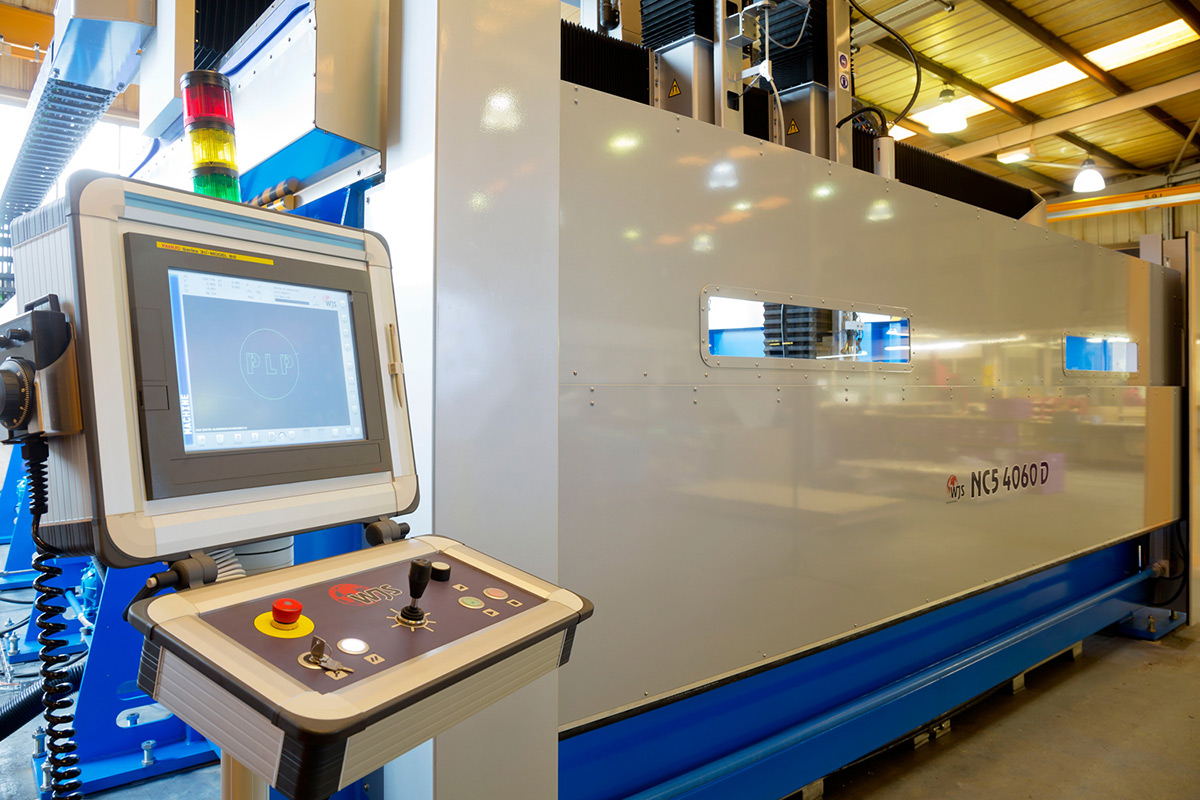

Handy Operator Panel
Zero Point Indicator
Work Piece Indicator System (probe function)
Fixture Arrangements,
Quick Water Level Adjustment
Jet Pen Marker System
Abrasive Delivery System with Abrasive Tower
Abrasive Removal System with Tip Container and Sediment Tank
Abrasive Level and Blockage Control
HMI Controlled Electronic Abrasive Feeder
HMI Remote Control of HP Pump
HMI Pressure Monitoring of HP Pump
HMI Proportional Valve Pressure Control
Unmanned Operation Functions

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime support by waterjet specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
