WJS Touch Screen HMI

Water Jet Sweden specific operator HMI software based on Fanuc Pictures

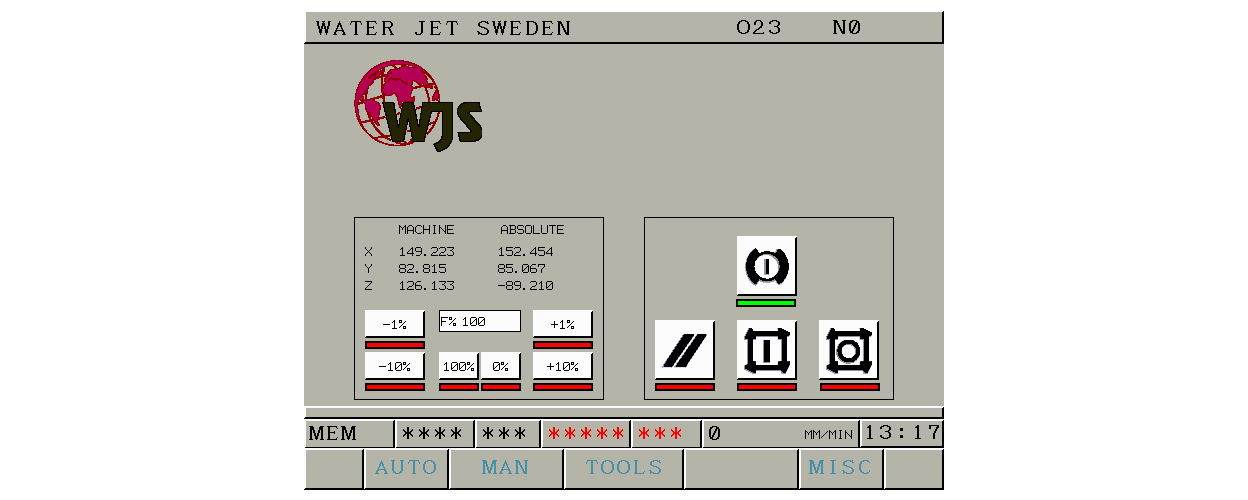

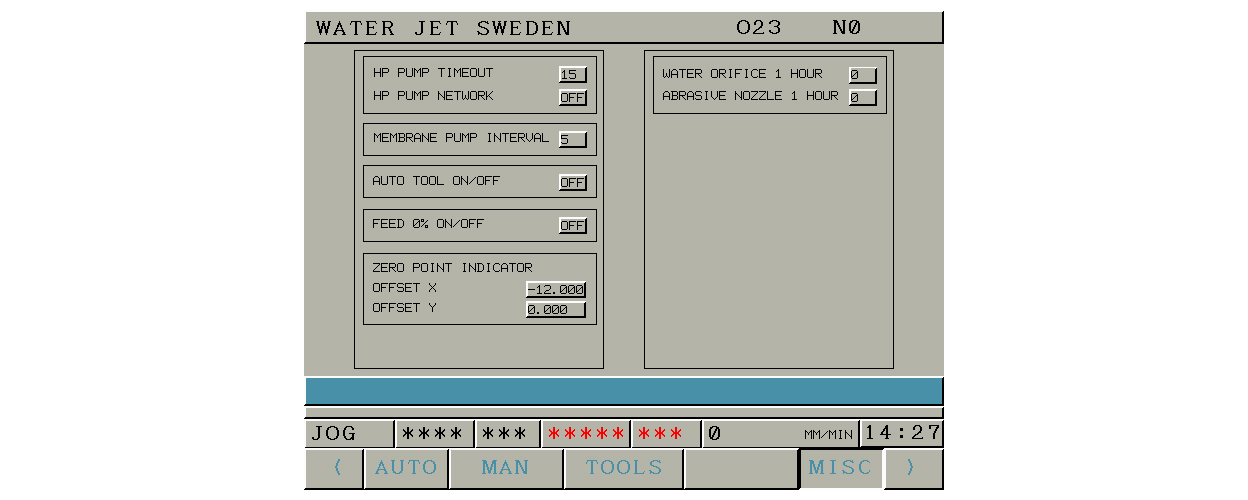

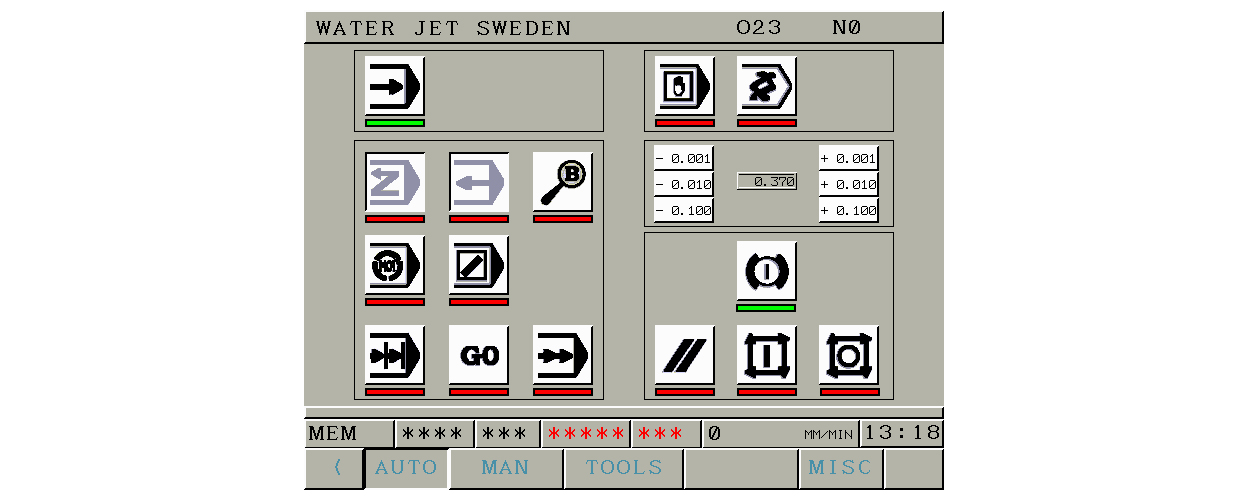

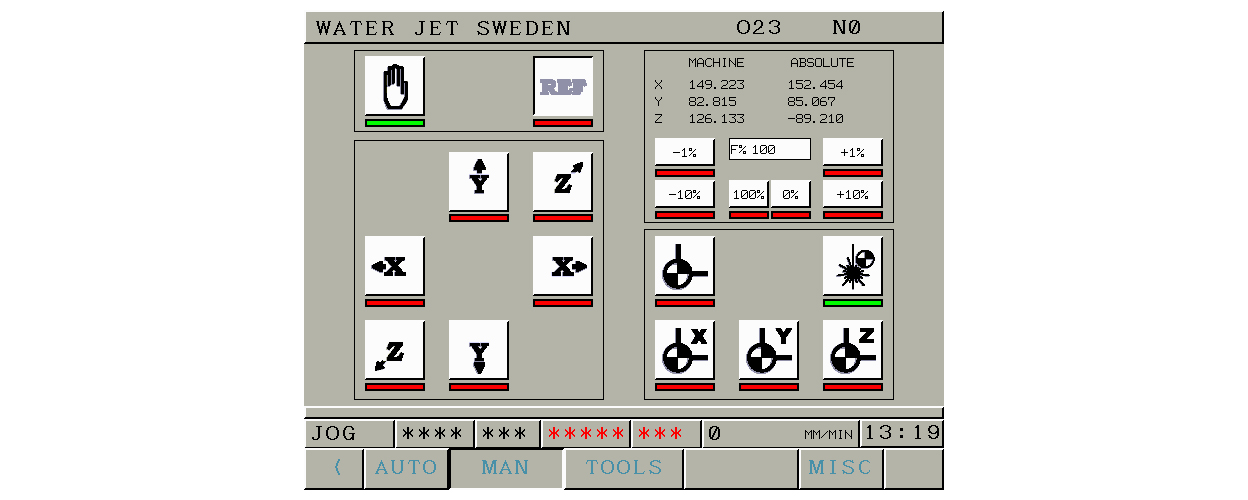

WJS Touch Screen HMI is the operator interface for all Standard Machine Models. It is a clean interface with all functions necessary for advanced 2D cutting. There is no simulated graphical display of the cutting process, but the operation keys follow the same simple logic used in the more advanced software Edgecut (available in PanelOne HMI for all Select Machine Models). The clean design and water jet specific functions makes WJS Touch Screen HMI a quick to learn and easy to manage operator environment.

Features:

Tool Management – Easy overview of all tool settings. Advanced tool handling including wear timers. Online radius compensation.

Operations functions – there is a long list of practical and time saving operational functions available in the WJS Touch Screen HMI

  • Retrace: Reveres the cutting direction
  • Reposition function: Stop cutting cycle, move manually away to measure the part etc.
  • Program restart: Restart when the cutting cycle have been aborted
  • Dry run function: Dry run test or restart
  • Online working height compensation (If no height sensor is used)
  • Real-time federate calculation
  • Cutting head and abrasive feeder service test, and manual scrap off cut
  • MDI: Execution of simple machine commands

Services – Operator messages/alarms and feedback from the machine. Alos service mode lock out (safety mode for a quick and safe restart) and logbook for CNC, PMC, alarms, messages
