WJS Alphajet TVL cutting tool

Taper angle control for perpendicular waterjet cutting

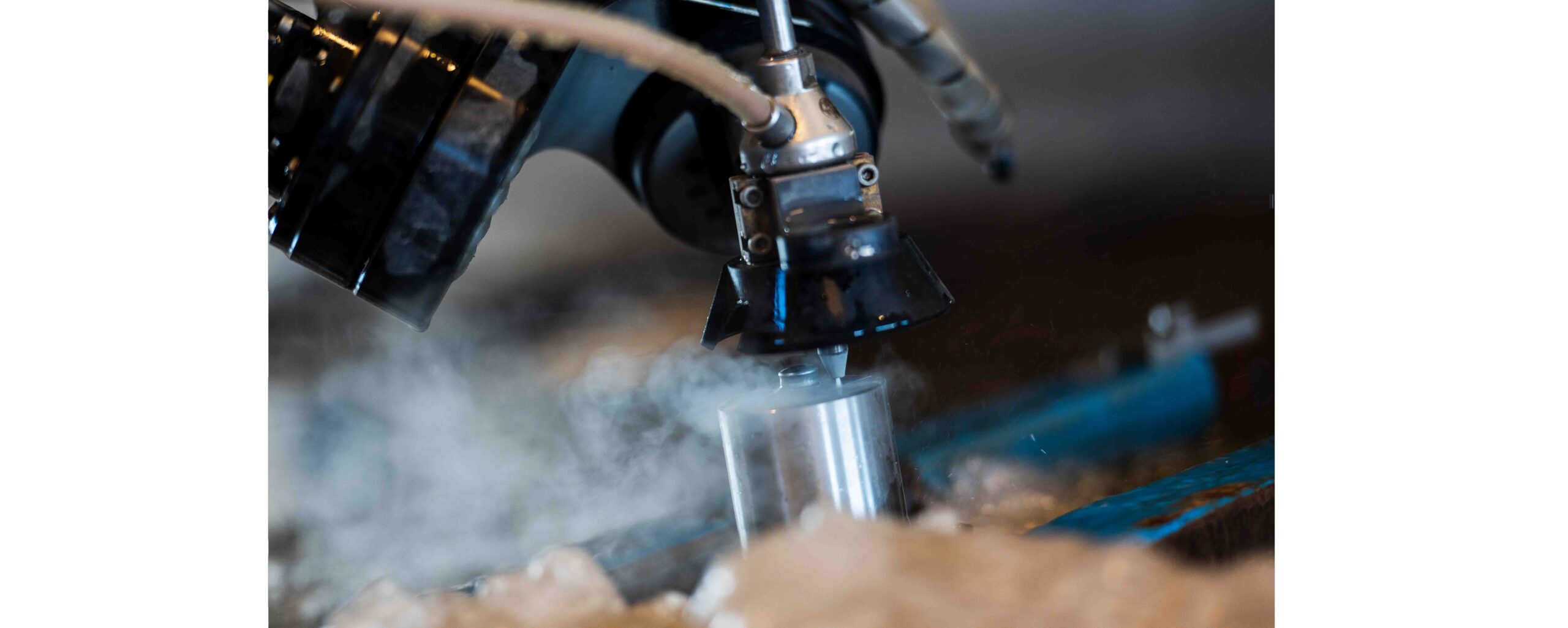

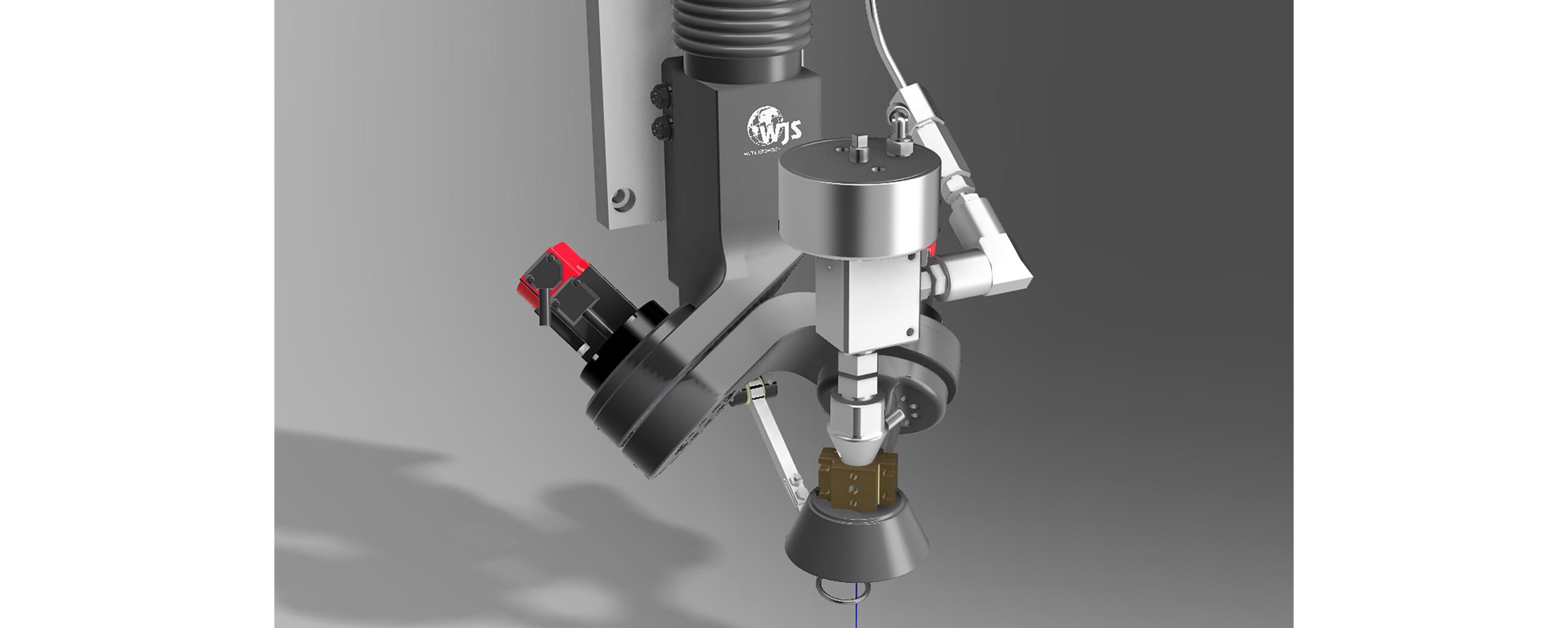

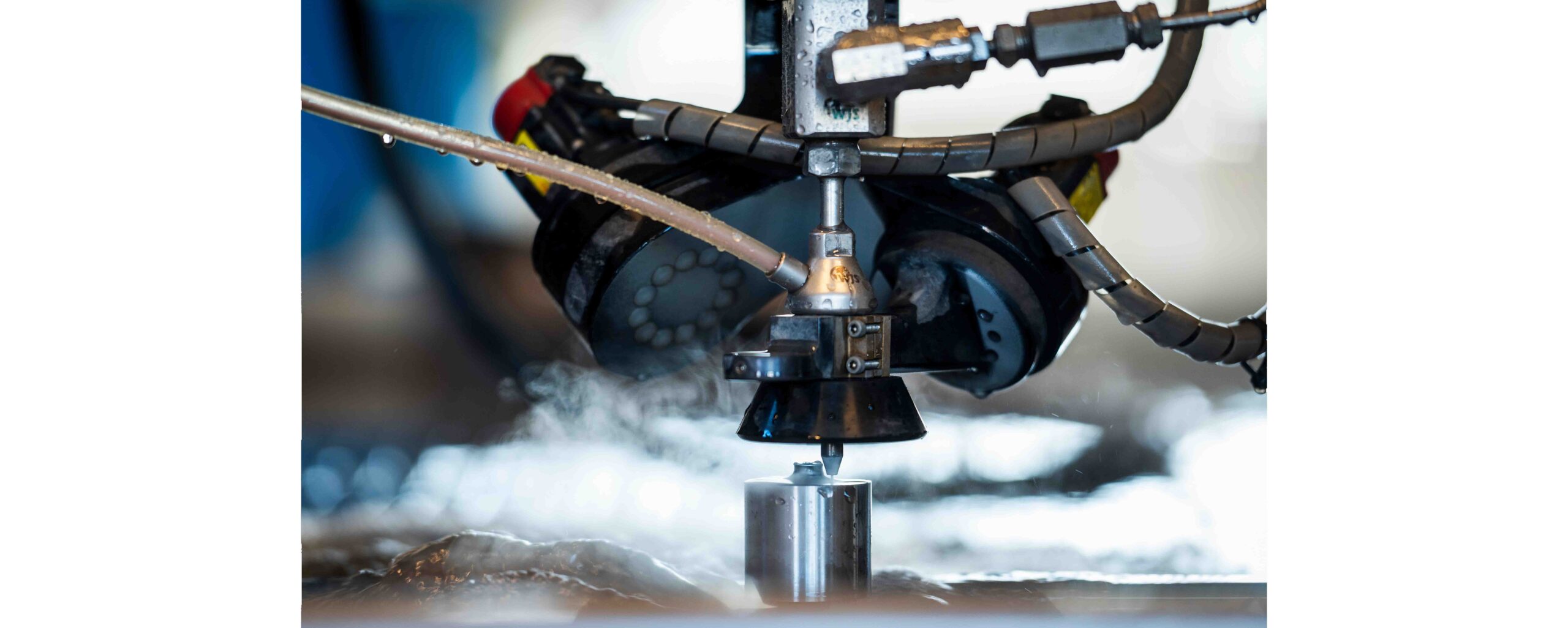

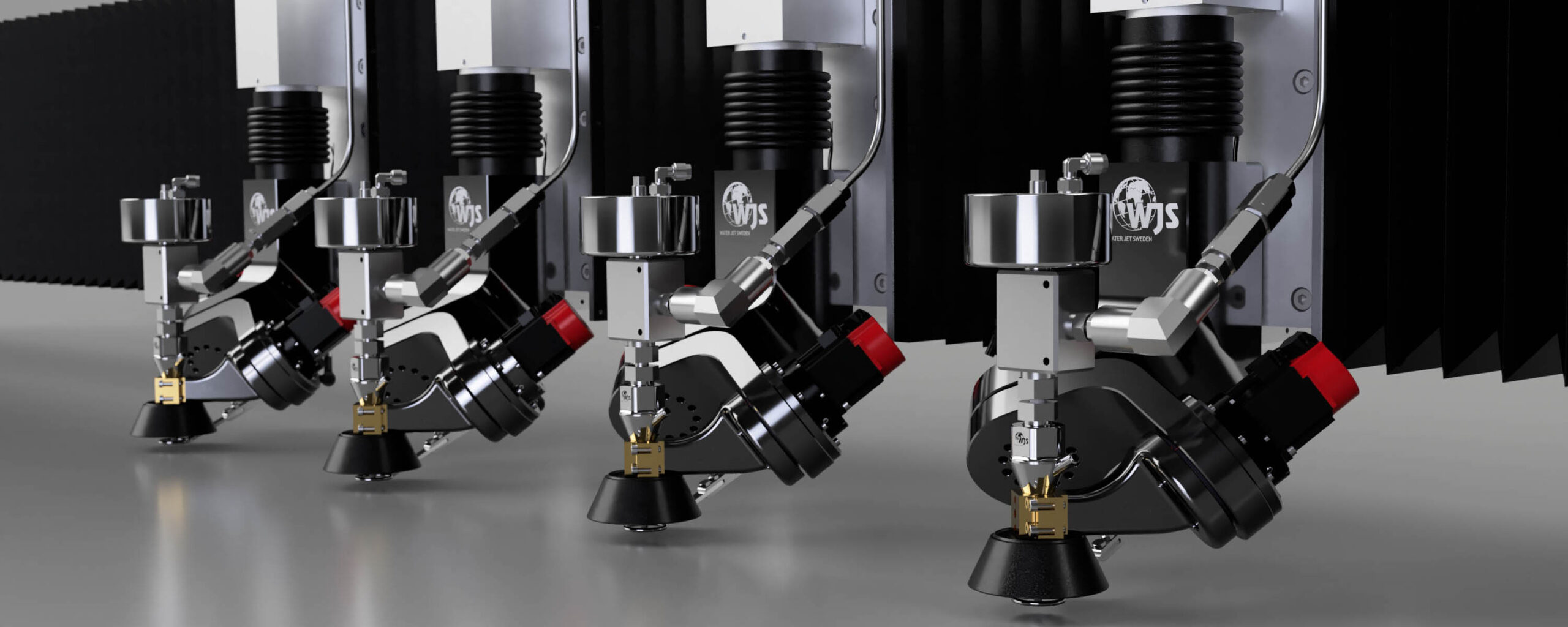

Alphajet has a compact design which means less weight and less limitations on the work area. This is extra beneficial for those who want to arm their machine with more than one cutting tool. You can fit up to four Alphajets on the same machine, thereby quadrupling the cutting capacity, still keeping the high accuracy.

Alphajet has a fixed TCP, which means that the machine’s X and Y axes doesn’t need to move to handle the taper angle control. Alphajet has a unique gearbox design; The 45-30-30 angles requires very small movements in the A and B axes when cutting, and the choice to put the tool holder very low on the cutting head provides a low rotation point with small, more accurate movements.

Changing the cutting head is a quick and easy operation. The cutting head is automatically centered thanks to the v-block tool holder and there is no need for extra calibration after changing the focusing tube. This both saves time and maintain the precision of the cutting head.

Since the Alphajet design only requires 4-axis system control, it can be applied on all machine models of Water Jet Sweden.

Contact

Peter Rüdén

Global Sales

Christian Svensson

Global Sales

Specifications

Movement: 45/30/30
Maximum rotation angle: ± 13°
Gears: Harmonic Drive
Motors: Fanuc
Transmission accuracy: < 1,5 arcmin
Repetition accuracy: < ± 0,1 arcmin
Angular accuracy: ± 0,05 mm
Pressure technology: 3800 - 6200 bar

Five year performance warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.
