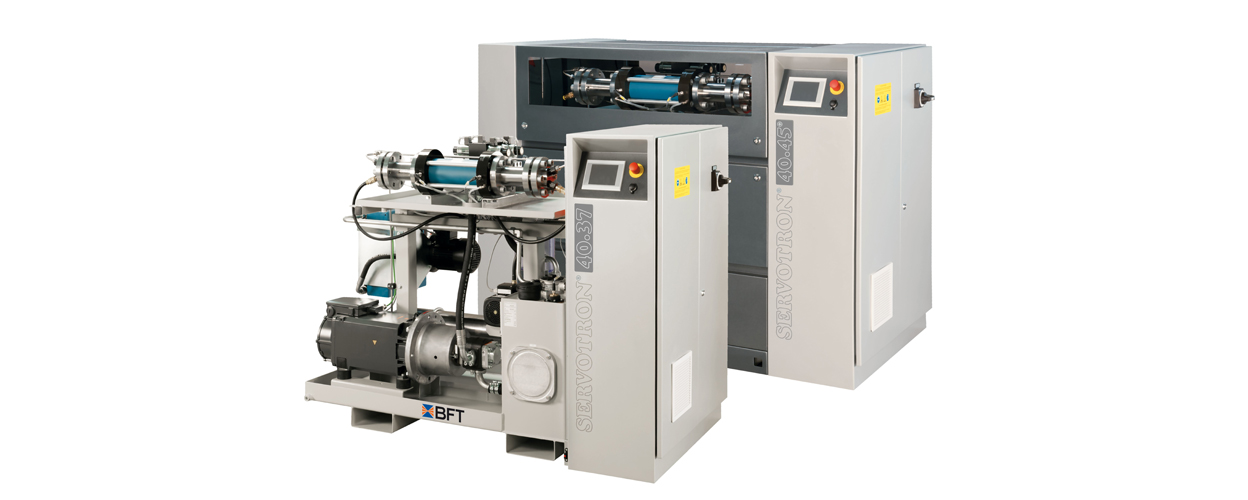

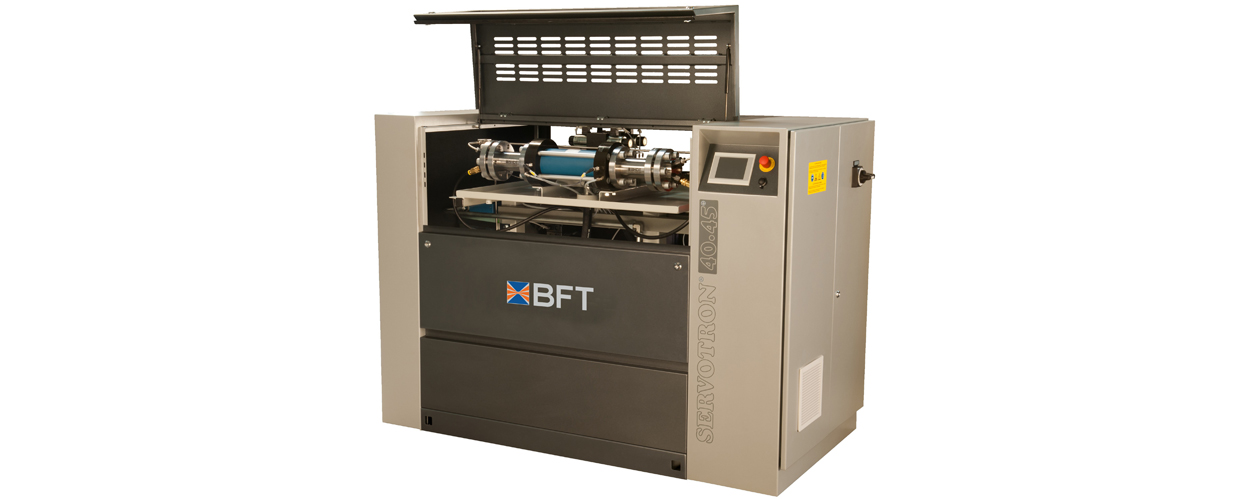

SERVOTRON® is available in the power classes 37 kW and 45 kW. Its operating pressure of 4,000 bar has been considered to be the optimum in the professional waterjet cutting sector for years.
The Austrian technical control board has confirmed that up to 24% energy can be saved with SERVOTRON® in a comparison with conventional pumps. It is available with a flow rate of 3.8 l per minute and 4.6 l per minute.
Highly efficient servo motor for optimal pressure and water flow regulation
The working principle of a slightly different kind.
The operational states are measured here in the high-pressure line and passed on to the control system. This creates a control circuit which reacts directly to the required water quantity and water pressure. The motor can be accelerated to 2,700 rotations per minute in 60 milliseconds. If the cutting head is closed, the motor stops and does not consume any energy. The working method of the SERVOTRON® has a considerably higher thermal efficiency factor.
We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.
Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
