Work Zone Protection

Optimize work station layout according to you production facility requirements

A water jet cutting system is a very precise and high-tech machine tool, but if not used correctly the powerful jet beam can be dangerous for both operator and machine. All Water Jet Sweden machines follow European Union Machine Directives and are CE-certified.

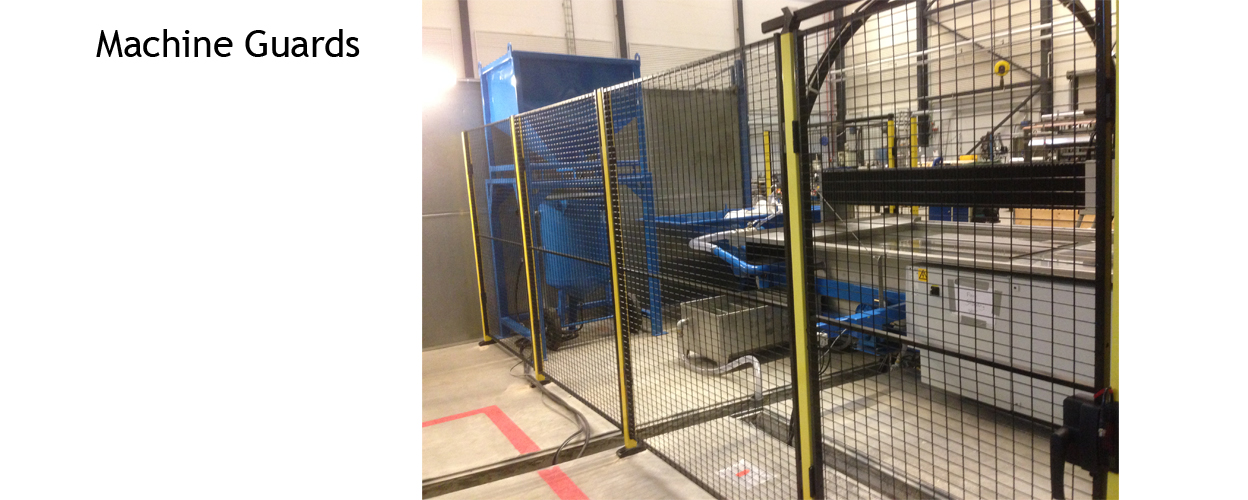

Machine Guards – The machine guards are placed close to the machine which reduces the total machine installation area. Wire mesh panels are the standard alternative. The abrasive removal system, abrasive delivery system and control cabinet are generally placed outside the zone for easy access.

Safety Wires – The safety wires are lower than the machine guards and are therefore installed at some distance from the machine. The safety wires are connected to cable pull switches which stops the operation if activated. The wires can quite easily be disconnected for service access.

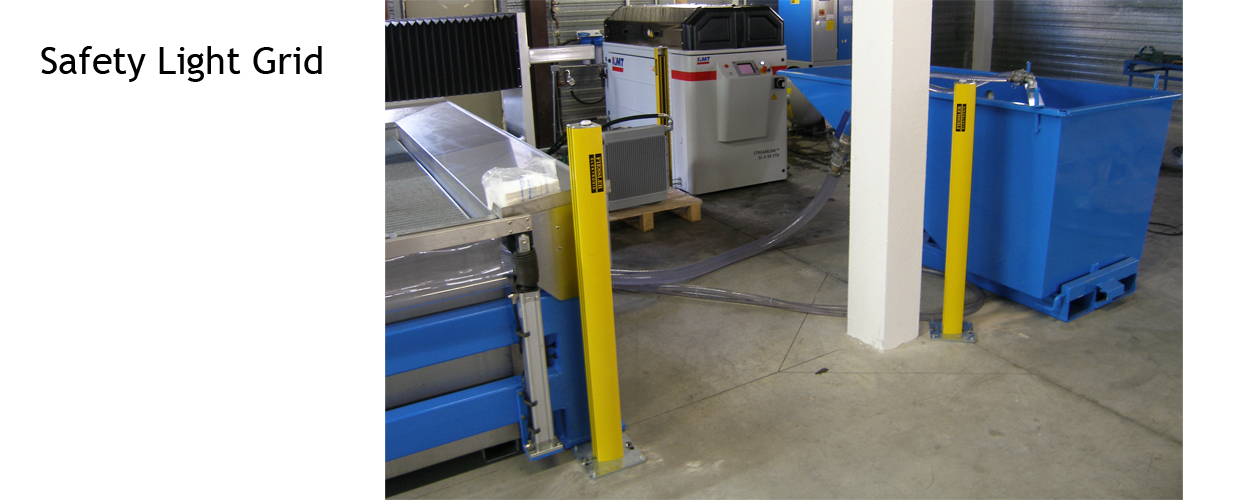

Safety Light Grids – A laser beam that automatically stops the operation if someone pass it during operation. It enables very easy service access and there is a quick-restart if triggered.
