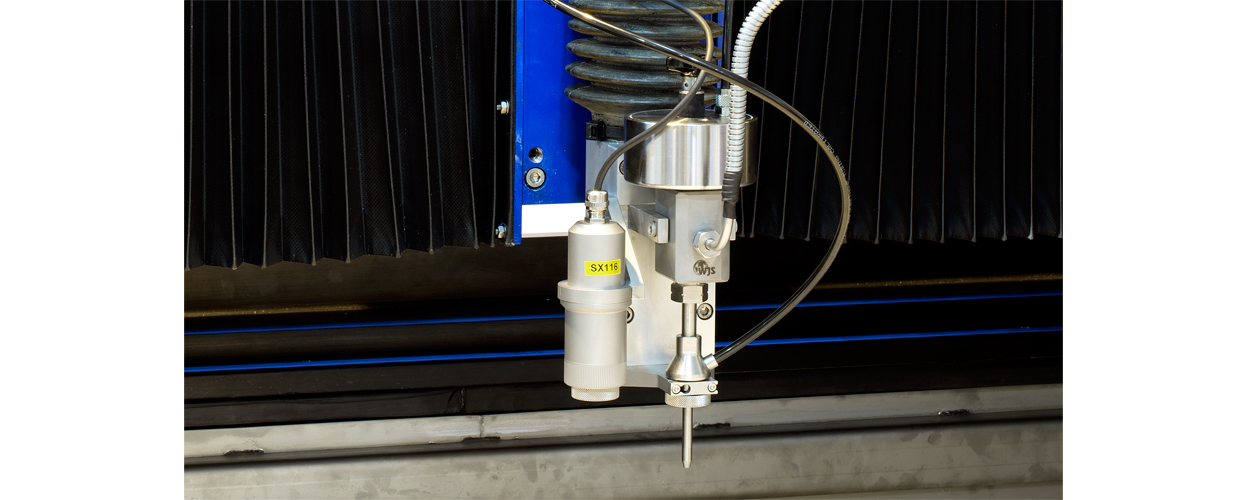

FAWJ Micro Cutting Head

Processing micro parts in hard materials

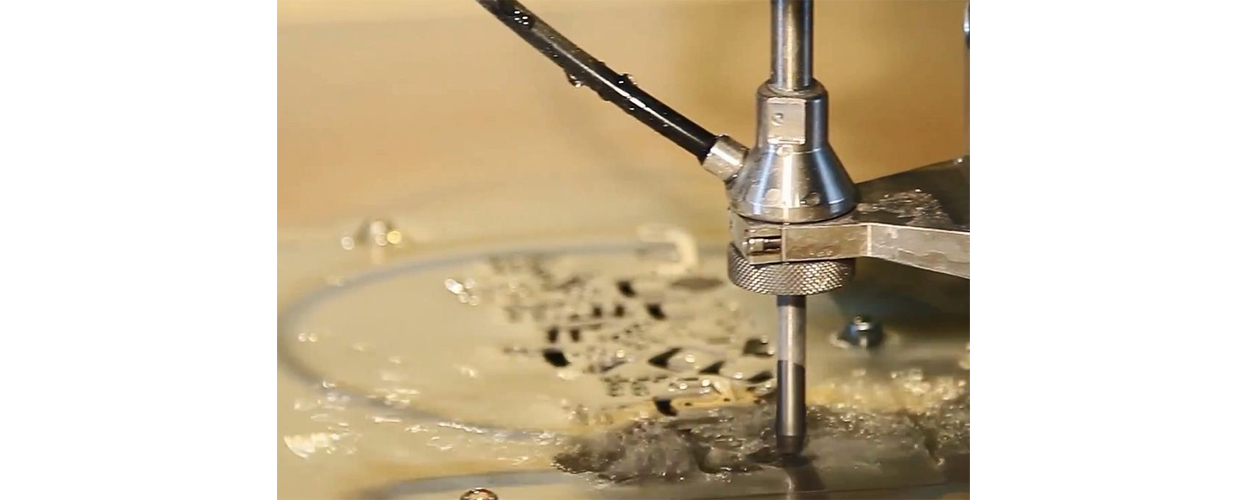

To cut narrow incisions in hard materials with high precision requires a specially developed waterjet cutting process. FAWJ stands for Fine Abrasive Water Jet (micro waterjet, finecut), and is a unique and world-class cutting process launched in 2008 by Water Jet Sweden. The FAWJ Micro cutting head can cut as narrow as 0.2 mm

The FAWJ Micro Head can be applied to several machine models, but only the Micro model NCM 10 offers a complete micro-cutting environment. Special linear encoders mounted on a frame isolate the structure from vibration and thermal effects. Repeatability over a 1000 mm working area can be reduced to the order of 2.5µm (micro meter) and part tolerances of 10µm in 10mm thick materials can be realized.

Contact

Peter Rüdén

Global Sales

Christian Svensson

Global Sales

Specifications

Inciion size 0.20 – 0.50 mm
Pressure technology: 4000 bar

Five Year Performance Warranty

We guarantee that all our machines keep the same tolerance level after five years as when the machine was first delivered.

Lifetime Access to Waterjet Specialists

Our service team is highly specialized within the field of water jet cutting. Via our hotline support, our technical expertise is available on a 24/7 basis.
