Upgrade options for efficient abrasive waste management

An appreciated system for continuous abrasive sludge removal is WJS STANDARD. With suction points in the tank connected to diaphragm pumps, the sludge is removed to a tip-container. Excess water returns to the tank and the tip-container is easily emptied when needed. Below we present some upgrade options that can increase your efficiency even further.

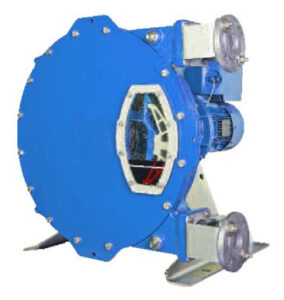

HEAVY-DUTY HOSE PUMP

More and more customers choose to install the extra powerful ho to increase their capacity of abrasive sludge removal. The HEAVY-DUTY HOSE PUMP is a very robust pump. Designed to remove large volumes of abrasive sludge with minimal wear and low operating costs.

-Saves Energy – the design is energy efficient with exceptional flow rates and suction lift capacity.
-Adaptable – The pump has a frequency control and the speed can be infinitely adjusted.
-Low maintenance – a simple design with few components requires very little maintenance. No auxiliary equipment, check valves or flushing systems are needed.
-Reliable – the pump can even run-dry indefinitely without damage
-The EXTRA POWERFUL HOSE PUMP is so efficient that it can be connected to several machines for emptying sludge sequentially.

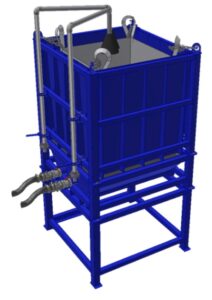

SLUDGE SEPARATION TOWER

The sludge tower separates return water from the abrasive sludge, which enables dry sack handling of the abrasive agent.

-Efficient – the system can handle large volumes of abrasive sludge
-Compact – the tower design requires minimal floor space
-Simple – Dry sack handling makes it easy to empty.
-Natural force- The separation and return of the excess water occurs naturally without the need for any kind of auxiliary equipment.

A ceiling height of >3500 mm is required to empty the tower with an overhead crane. The upper part can also be lifted off to unload/load at floor level instead. The full tower is 2562 mm high and has a footprint of 1380 x 1320 mm.

An accessory to the tower is the customized LIFTING YOKE for forklifts. It simplifies the loading and unloading of the Big Bag bags. The yoke has four “quick-release” hooks for easy attachment of the Big Bag bag’s lifting eyes and fits a standard forklift.
